Predominant soils around this area range from loamy sand to sandy clay with caliche, and the caliche can interrupt otherwise well-drained profiles. This hard, calcium-rich layer often sits just beneath the surface, changing moisture movement and aeration in ways that standard trench fields do not anticipate. Don't assume uniform drainage across a lot; caliche heterogeneity can cause two adjacent areas to accept effluent very differently. A field that looks good on one side of the house may underperform on the other if caliche pockets intervene.
Caliche acts like a natural barrier to percolation. In clay-rich zones, it can prevent fine-grained soils from accepting effluent promptly, while in looser pockets, it may drain too quickly and fail to provide adequate treatment time. In practice, this means trench depth and sidewall percolation rates can vary from one section to the next. Before committing to any field layout, you must map where those caliche zones lie and how they influence vertical and horizontal flow paths.
Begin with a robust soil survey that prioritizes caliche mapping. Use test pits spaced across the intended drain field area to locate hardpan layers and any abrupt shifts in soil texture. Record percolation observations at several depths, not just the surface, because caliche can block deeper drainage even if the upper profile appears workable. If percolation tests reveal consistent, slow absorption in one zone and rapid drainage in another, plan to separate those zones with different field designs rather than treating the area as a single homogeneous bed.
In this Frio County area, caliche heterogeneity affects trench depth and sidewall percolation, so two parts of the same lot may not accept effluent the same way. If a traditional gravity trench shows narrowing feasibility due to caliche, consider adapting the design rather than forcing a uniform layout. For zones where caliche creates poor drainage, the next steps involve selecting an alternative layout that can accommodate variable infiltration rates without compromising treatment.
Where caliche creates poorly draining zones, alternative field layouts such as chamber or mound systems may be favored over a basic trench layout. Chamber systems provide more surface contact and can shrug off small, irregular percolation variances because their larger, discrete pathways distribute effluent differently. Mounds elevate the drain bed, moving the infiltrative surface above problematic shallow caliche layers and driven moisture pockets. Both options can maintain adequate treatment in sites where a conventional trench would underperform or fail due to caliche barriers.
In planning, ensure the design explicitly accounts for soil variability rather than assuming a uniform profile. Engage the site with a qualified installer who can interpret soil pit data, map caliche contours, and translate that into a field layout that matches the observed absorption behavior. For larger lots, consider dividing the drain field into sub-areas with distinct designs if test results show significant lateral variation. Document where caliche presence dictates different approaches so future maintenance or expansion can respect the original subsurface realities.
Because caliche can alter both depth and pore connectivity, monitor the system after installation for signs of uneven settling or slow response in one portion of the field while another behaves normally. Address issues early by re-evaluating surface drainage, grading, and any encroachment that could worsen localized waterlogging or compaction around the bed. A design that actively accommodates caliche-driven variability-favoring chamber or mound layouts where needed-tends to offer more reliable performance over time than a single, uniform trench approach.
Dilley's septic landscape is characterized by Frio County's caliche-layered sandy and clay soils, where drainage can shift from a sandy pocket to a caliche barrier within a few feet. That variability means no single design will consistently work across every lot. Common systems in this area include conventional, gravity, chamber, mound, and low pressure pipe (LPP) systems, and each has a place depending on the soil profile, seasonal moisture, and how open the sandy horizons stay. In practical terms, the choice hinges on how caliche and moisture interact with the footprint and slope of the parcel, as well as how the soil communicates with the proposed drain field. Understanding the local soil mosaic-where open sand pockets exist, where caliche interrupts vertical or lateral flow, and where seasonal wetness concentrates-helps determine not just feasibility but long-term performance and maintenance needs.
If the soil profile remains open and caliche does not impede vertical or sidewall movement, conventional and gravity systems fit best. In a typical sandy pocket, gravity drainage through a standard trench field or chamber layout can work efficiently, with good infiltration and predictable performance. These designs leverage the natural gravity flow from the tank into the absorption area, making maintenance straightforward and initial installation relatively straightforward. The key to success here is confirming that the drain field can remain dry enough to dry-season performance expectations, and that caliche does not create perched water or lateral blockage that would stall infiltration. On lots where the caliche layer is shallow or widely permeable, these systems can deliver reliable operation with fewer moving parts and simpler service profiles.
On sites where caliche is restrictive or seasonal wetness is pronounced, standard absorption fields become less reliable. Mound systems rise above the natural grade to place the absorption material above problematic layers, creating a controlled, well-aerated zone for effluent disposal. This approach helps overcome shallow, compacted, or perched soils and grants a more predictable failure-risk profile in wetter seasons. Similarly, low pressure pipe (LPP) systems distribute effluent through small-diameter laterals at low pressure, promoting uniform infiltration and reducing the risk of trench clogging in marginal soils. LPP can be particularly beneficial on parcels with uneven subsurface drainage or where standard trenches would risk bridging or channelling through caliche pockets. In both cases, the design prioritizes maintaining consistent moisture content and providing a robust path for effluent to reach a receptive zone without relying on a homogeneous soil profile.
To select the best fit, you must balance the observed soil behavior with the lot's unique features. Conduct soil probing to identify caliche depth, the extent of open sandy layers, and any zones of standing water during wet periods. Look for evidence of lateral caliche barriers that could hinder sidewall movement or create preferential flow paths. If caliche is shallow and the sand remains well-drained, gravity or conventional layouts may suffice. If you encounter restrictive caliche with limited vertical drainage or recurring seasonal saturation, mound or LPP options should be considered as primary contenders. The decision should reflect not only current conditions but expected shifts with rainfall patterns and long-term soil aging, as caliche can evolve with time and moisture input. In Dilley, the goal is to align the system's delivery and infiltration strategy with the site's intricate soil mosaic to minimize clogging, maximize longevity, and reduce the chance of slow drain-field responses after heavy rains.
Because caliche-driven variability can cause sharp drainage changes across a property, a well-designed system in this area accounts for heterogeneity within the drain-field footprint. Even within a single lot, some zones may drain readily while adjacent pockets remain perched or saturated. The best system type, therefore, may involve a hybrid approach-combining lines or sections designed for higher-permeability zones with mound or LPP segments where necessary. The intent is to maintain steady effluent distribution, avoid the formation of perched water, and provide a resilient performance envelope across seasonal cycles. When selecting among conventional, gravity, chamber, mound, or LPP options, prioritize a design that offers predictable infiltration under variable moisture conditions while limiting maintenance demands and reducing the risk of premature field failure due to caliche constraints.
In this region, summers run hot and soils can dry out quickly, while winters bring milder temperatures and periodic rainfall that saturates the ground. Drain fields in Dilley often swing between moisture loss and saturation across the year. Those swings are amplified by caliche-driven soil variability, which can create pockets where drainage behaves very differently from nearby spots. The result is a system that may perform well in one season and struggle in another, especially during wet springs or after heavy rain events.
Before a drain field is installed, map how groundwater and soil moisture change across the property with the help of a qualified professional who understands caliche constraints. Look for zones that stay visibly damp after rains, as well as troughs that dry out quickly in the late summer. Seasonal moisture differences can push the system toward rapid drying or prolonged saturation, both of which impact treatment capacity. If your property has areas that consistently hold water after storms, plan for alternative designs that can accommodate those transitions rather than relying on a single, uniform field.
Caliche variability often means that a standard trench field may not be uniformly reliable across the site. In practice, this can translate to favoring select field configurations that tolerate wetter periods or incorporate features to manage moisture more effectively, such as elevated or covered sections, or a mound system where infiltration is constrained by perched water. During construction, ensure access remains clear for anticipated pumping windows, which may be tighter during wet seasons. Have a maintenance plan that aligns with seasonal patterns: more frequent inspections after heavy spring rains and before the dry-season peak can help catch early signs of saturation or slow infiltration.
Spring storms can raise groundwater levels quickly, momentarily reducing the treatment capacity of the drain field even on soils that perform well in dry weather. After a prolonged wet period, the soil may stay saturated longer than usual, which slows effluent percolation and can extend settling times. If the water table rises seasonally, expect shorter windows for effective pumping and more conservative use of water until soils dry enough to accept effluent again. Do not assume immediate recovery-ground conditions can lag behind calendar dates by several days to weeks.
During hot summers, conserve water to lessen the load on the septic system when soils become drier and more prone to cracking or restricted infiltration. Space laundry and dishwasher loads, and spread outdoor watering out to avoid creating concentrated surges. In advance of the wet season, prepare the system by ensuring cleanouts are accessible and that the drain field surface is free of compaction. When heavy rain is forecast, minimize unnecessary irrigation and postpone large water uses that could overwhelm the system during the period of elevated soil moisture.
Permits for on-site sewage disposal systems (OSSF) in this area are handled through the Frio County Health Department under the Texas OSSF program, with oversight from the Texas Commission on Environmental Quality (TCEQ). The process reflects state expectations for design, installation, and long-term performance, and the local health department coordinates with homeowners, engineers, and installers to ensure compliance with applicable rules. Understanding this structure helps you align your project with the correct approvals from the outset and reduces rework.
Approval in this jurisdiction is not a single-signoff event. Typical local approval requires a soil evaluation, a formal design review, and multiple installation inspections throughout the project. Each step builds on the previous one to confirm that the soil conditions-especially caliche layers and variable drainage-are adequately accounted for in the system design. The soil evaluation informs the field layout, trench sizing, and leachate distribution method, while the design review verifies that the chosen system type and components suit the site specifics. Expect several checkpoints rather than a one-and-done permit.
Licensed installers are usually required in this county process, and the permit path relies on a qualified professional to prepare the design and supervise the installation. This means you will likely work with a local septic contractor who holds the appropriate state credentials and is familiar with Frio County's soil characteristics, especially caliche-driven variability. Permit timing can stretch with workload and weather delays, so plan for potential back-and-forth communications, additional soil testing, or minor design tweaks following inspections. Scheduling ahead and maintaining clear contact with the health department helps keep the project moving.
Before you submit the first packet, gather your parcel's access details, proposed system location, and any existing utility constraints. Because soil variability can demand a more detailed evaluation, request a formal statement on whether a conventional trench, mound, or other design is best suited for your site given caliche presence and drainage patterns. Keep a timeline buffer for the design review and inspection sequence, and confirm the approved inspection windows with the installer. Having a documented plan aligned to Frio County's expectations reduces delays and supports a smoother permit journey.
In this area, caliche layers and mixed sand/clay soils create sharp drainage changes across a single property. Those variations force design changes that most often push projects away from a simple standard trench field. When caliche is encountered at shallow depths, trench excavation becomes deeper or alternative distribution methods are required. The result is a meaningful lift in material and labor costs, and sometimes a switch from a conventional trench to chamber, LPP, or mound layouts. Provided local installation ranges are about $7,000-$15,000 for conventional, $8,000-$14,000 for gravity, $9,000-$18,000 for chamber, $12,000-$25,000 for LPP, and $15,000-$35,000 for mound systems.
If caliche forces deeper excavation or redesign, the project moves from a standard trench field to more specialized solutions. A deeper excavation adds time and equipment costs, site preparation, and partial backfilling, all of which compound the overall price. When a switch to chamber or LPP is needed, the material costs rise and the installation complexity increases, and that is reflected in the higher end of the local ranges. What starts as a straightforward install can quickly escalate once soil conditions determine distribution type and depth.
Weather-related delays are common in this area when soils are saturated in spring or winter. These conditions not only slow progress but can compress the work window and create inefficiencies. The result is scheduling pressure that may elevate temporary labor costs and extend the project timeline. Expect some impact on the bottom line during wet seasons, especially on sites with challenging caliche overlays or where a non-traditional distribution approach is necessary.
Key decision points include the choice of distribution method (conventional vs. chamber vs. LPP vs. mound), depth of excavation, and soil treatment needs to address caliche. Early soil testing and a clear plan for potential redesign help you estimate more accurate costs up front and minimize surprises when caliche is encountered. Remember that weather windows and material availability can shift costs by a noticeable margin, so build in a buffer for delays and alternate layouts.

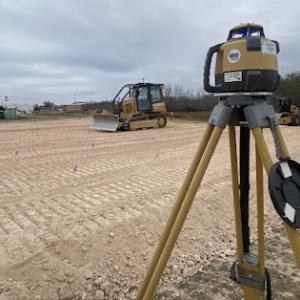

West 40 Construction
Serving Frio County
4.8 from 6 reviews
West 40 Construction is a land clearing and construction company that is located in Cotulla, Tx. Customer satisfaction is our number one priority. We offer a variety of services to meet your needs and budget. We are fully insured and take pride in everything we do. Land clearing, Road building, bulldozer services, stock ponds / tanks, oilfield services, Poly pipe construction, septic tank installation, material / aggregate material hauling.
In this area, caliche and mixed sandy-to-clayey soils shape how a drain field accepts effluent. Because of those soils, pumping timing is not just about tank size or national averages; it directly hinges on how well the field is accepting effluent. A local midpoint pumping interval of about every 4 years fits these conditions, with an overall practical range of roughly every 3-5 years. Regularly assessing both tank contents and field performance helps prevent surprises when the soil stops accepting or starts leaking from the system.
When planning a service, start by checking whether the field is still draining as expected. If the drain field shows slow drainage or surface dampness after rainfall, that signals reduced infiltration capacity and could justify edging toward the shorter end of the 3- to 5-year window. Conversely, if the field readily accepts effluent and the soils appear to dry quickly after a rain, you may be comfortable pushing toward the longer end of the interval. The caliche layer often acts like a perched barrier, so performance can swing notably with small soil moisture changes.
Seasonal rainfall and soil moisture swings drive maintenance timing. Wet periods increase the chance of visible slow-drain symptoms, especially when the caliche-rich zones saturate quickly. In dry periods, infiltration behavior shifts and trenches may seem to drain faster, but prolonged dry spells can mask underlying field stress. Use the weather pattern as a quarterly check-in: after several storms or a dry spell, reassess field drainage before committing to a longer interval.
Keep a simple maintenance log that notes the time since last pump, field observations after normal use, and recent rainfall levels. If you notice slower drainage after irrigation or heavy rains, consider accelerating the next pump within the 3-year minimum window. If the system continues to perform smoothly across several seasons of varied moisture, you can maintain the longer end of the range. The goal is to align pump timing with how well the field is accepting effluent under typical Dilley conditions.
A recurring concern in this area is a field that tests or performs acceptably in one soil pocket but struggles where caliche is shallower elsewhere on the same property. Caliche layers create abrupt barriers to drainage, so a trench or drain field that looks fine on a soil map can fail in real life when buried caliche pockets interrupt lateral flow. You must treat every soil test as a separate forecast, not a blanket assumption across the entire system footprint. If a test pit or probe shows mixed results, plan for a design that accommodates variable percolation and alternative laterals or treatment areas.
Drain fields in this area are vulnerable to performance drops after heavy rain when seasonal groundwater rise combines with restrictive subsoil layers. Even if the system drained well last month, a saturated shallow zone can compress remaining unsaturated volume, reduce soil contact, and push effluent toward the surface or back into the septic tank. Watch for slower dispersal, gurgling, or damp patches near the distribution area after storms. The risk is not a single event but a pattern that signals the field is nearing its seasonal limit on treatment area.
Systems installed for dry-season conditions can show stress later when spring storms or winter saturation reduce the soil's available treatment area. A field that seemed to have ample capacity in dry months may suddenly lose performance as moisture fills the pore spaces. This requires proactive planning: anticipate the shift with broader absorption avenues, and monitor for signs of perched water, surface dampness, or delayed effluent clearing after wet periods. In Dilley, the warning signs accumulate quickly.
