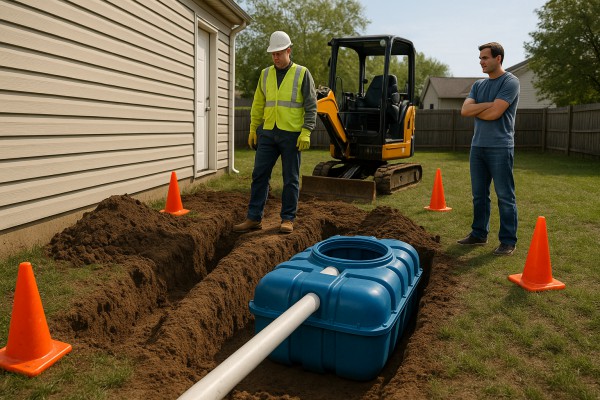

Septic tank installation

Septic tank installation

What this page covers

This section walks you through the basics of installing a septic tank: from planning and permitting to the actual installation steps and the first maintenance tasks after the system is in service. You'll find practical guidance, clear expectations, and checklists to help you work confidently with your contractor and stay within local codes.

Planning before ground breaks

A solid plan saves time and headaches later. Key planning steps include:

  • Site assessment: grading, drainage, and access for future pumping and maintenance.
  • Soil and percolation testing: helps determine whether a conventional tank or an alternative system fits your property.
  • Tank sizing: typically linked to home size, number of bedrooms, and anticipated wastewater load.
  • Setbacks: stay clear of wells, property lines, streams, and structures per local rules.
  • Permits and approvals: most places require design plans, inspections, and approved drawings before excavating.

Tank types and what to consider

Choosing the right tank affects longevity, maintenance, and upfront cost. Common options:

  • Concrete tanks: very durable, heavy, with long track records.
  • High-density polyethylene (HDPE) or fiberglass tanks: lighter, easier to handle, corrosion-resistant.
  • Material pros and cons:
    • Concrete: rugged, long lifespan, higher install cost and weight.
    • Plastic: lighter, easier to transport, may need thicker walls in some soils.
  • Tank layout: single-compartment versus multi-compartment designs; most homes use two-compartment tanks for better sludge separation.

Installation sequence (step-by-step)

  1. Permits, design approval, and scheduling with a licensed contractor.
  2. Site prep: flag trees, mark the system footprint, and clear obstructions; set up safe access for excavation equipment.
  3. Excavation and tank placement: trench or hole prepared to exact dimensions; the tank oriented for inlet and outlet connections.
  4. Pipework and baffles: install inlet and outlet tees, baffles, and any effluent filters as required; ensure slope and grade are correct for proper flow.
  5. Backfill and compaction: backfill in stages, careful to avoid damaging pipes; maintain bedding around the tank for stability.
  6. Inspector check and pressure/air tests: final inspections often include leak tests and alignment verification.
  7. Final grading and cover: restore the surface with soil, seed or sod as needed, and ensure access risers or lids are secure.

Setbacks, codes, and inspections

  • Local rules vary, but typical considerations include:
    • Minimum distances from wells, streams, sidewalks, and buildings.
    • Required setbacks for alternate systems or mound systems.
    • Certified installers and on-site inspections during key milestones.
  • Keep copies of permits, design plans, and inspection reports for your records.

What to expect during installation

  • Duration: most installs take a few days to a week depending on size, weather, and soil.
  • Noise and activity: typical trenching, heavy equipment, and temporary traffic changes.
  • Common questions homeowners ask:
    • Will I need landscaping changes after installation? Often minor grading adjustments are needed to ensure proper surface drainage.
    • Can I use the yard during installation? It depends on the layout; your contractor will coordinate access and safety zones.

After installation: maintenance basics

  • Pumping schedule: most homes require pumping every 3–5 years, depending on usage and tank size.
  • Filters and baffles: keep effluent filters clean (if present) and ensure baffles stay intact to prevent solids from leaving the tank.
  • Wastewater practices: avoid flushing grease, solvents, wipes, or non-biodegradable items; landscape grading should direct runoff away from the system.
  • Short-term care: observe for odors, damp areas, or lush patches that might indicate issues and report them promptly.

Signs You Need Septic tank installation

You're building a rural home or can't connect to municipal sewer

  • No viable sewer line nearby, or distance makes connection impractical or prohibitively expensive.
  • Local codes require a private wastewater treatment solution for on-site homes.
  • You want a system tailored to your lot, soil, and projected wastewater flow.

You're replacing an old or nonstandard system

  • Your current setup is a cesspool, mound, or outdated septic that's failed or near failure.
  • Repairs keep recurring and a full replacement is more sensible than patching ongoing issues.
  • You're expanding the home or adding bathrooms, which increases wastewater and may require a larger system.

You notice wastewater problems in and around the home

  • Frequent backups into sinks, toilets, or drains.
  • Slow drainage across multiple fixtures after running water.
  • Unpleasant sewer odors inside the house or near plumbing vents.

You see environmental or yard cues

  • Standing water, soggy patches, or pooling on the lawn above where you suspect the drain field.
  • Lush, unusually green grass or plants over a particular area, often indicating a leaky or overworked drain field.
  • Wet or damp spots persisting after rain, especially near the home's foundation or away from the sewer line.

Your site and soil present constraints

  • Groundwater is shallow, or soil percolation is poor for standard drain fields.
  • The lot is steep, rocky, or has limited suitable space for a conventional system.
  • Local zoning or environmental rules require a specially designed system (alternatives, mound, or bed systems).

Your home's size and water use are growing

  • Family size is increasing, or you're adding a bathroom, a large soaking tub, or a high-water-use appliance.
  • Existing system age and capacity don't align with current or planned water usage.
  • You're targeting long-term reliability and value, not just a quick fix.

You want to plan ahead with a professional assessment

  • You're in the planning stage of a new build or major remodel and want a system designed for your lot.
  • You prefer a formal site evaluation, soil tests, and a designed layout before digging starts.
  • You want a licensed septic designer to review options (standard, alternative, or mound systems) based on soil and space.

Quick verification steps (do these early)

  1. Check with the local permitting authority about sewer availability for your property.
  2. Schedule a soil and site evaluation to confirm percolation rates and suitable drain-field location.
  3. Estimate wastewater flow for your home (fixtures, anticipated additions, and water-use habits).
  4. Consult a licensed septic designer or contractor to discuss system options, costs, and timelines.

Sealing the decision

  • If you lack access to sewer services, observe any of the above signs, or are planning a build or major remodel, septic tank installation is typically the practical, code-compliant path. The right design accounts for soil, space, and future needs, helping protect your home and your groundwater.

How Septic tank installation Works

Planning and Permits

  • Obtain the required licenses, permits, and inspections from your local health department or building authority before work begins.
  • A licensed septic designer or engineer reviews your site, climate, and soils to create a system plan tailored to your home.
  • A site survey, utility locate, and setback checks are done to prevent conflicts with wells, streams, property lines, and driveways.

Site Evaluation and System Design

  • Soil and percolation tests determine drainfield size, type, and whether a mound, bed, or trench system is needed.
  • The designer selects tank size, compartments, and material (concrete, polyethylene, or fiberglass) based on household size and soil.
  • The plan shows tank placement, drainfield layout, access points, and required setbacks.

Pre-Installation Prep

  • The work area is marked clearly, with protection for existing landscaping and drainage routes.
  • Access routes for heavy equipment are arranged, and erosion control measures are put in place.
  • Utilities, driveways, and other structures are considered to avoid interference during excavation.

Excavation and Tank Placement

  • A trench is dug for the tank and separate trenches are prepared for the drainfield.
  • The tank is lowered into place on a stable base (sand bed or compacted fill) and leveled.
  • Inlet/outlet baffles and risers are installed, and all connections are checked for watertight seals.
  • The tank is backfilled gradually to secure it and prevent shifting, with careful attention to avoiding damage to pipes.

Connecting to Home and Drain Lines

  • A 4-inch sewer line runs from the house to the tank, with a consistent slope for gravity flow.
  • Cleanouts and proper seals are installed at the house connection and at the tank inlets/outlets as required by code.
  • The interior connections are aligned to ensure smooth flow from the house into the tank and onward to the drainfield.

Drainfield Installation

  • If the soil allows, trenches are prepared for the distribution system (perforated pipes) on a bed of gravel.
  • Pipes are laid level and evenly spaced, then covered with a layer of gravel and geotextile fabric to prevent soil intrusion.
  • The trenches are backfilled in lifts, avoiding heavy compaction that could crush pipes or impede drainage.

Backfilling and Finishing

  • Backfill around the tank and drainfield is done carefully to protect pipes and joints.
  • Final grading and surface drainage are configured to keep water away from the system.
  • Access lids or risers are installed for future maintenance, and the area is restored to blend with the surroundings where possible.

Inspection, Testing, and Start-Up

  • A local inspector checks tank placement, baffles, connections, and drainfield integrity.
  • The system is tested for leaks and proper flow, ensuring the drainfield receives effluent as designed.
  • Upon passing, you receive final approval or a completion certificate, signaling the system is ready for use.

First Use and Ongoing Care

  • During the initial weeks, use the system gradually to avoid overwhelming fresh soils and the drainfield.
  • Keep a maintenance log and follow pumping intervals recommended by your designer or local guidelines.
  • Remember: regular inspections and timely pumping extend the life of your system and protect your home investment.

Typical Septic tank installation Costs

Typical cost ranges

  • Standard gravity system with a 1,000–1,500 gallon tank and conventional drainfield: roughly $5,000–$12,000 installed.
  • Plastic or fiberglass tanks with a standard drainfield: about $4,500–$9,500.
  • Larger tanks, longer or more complex drainfields, or challenging soils (rock, high water table): typically $9,000–$20,000.
  • Specialty systems (mound systems, aerobic treatment units, or heavily engineered designs): $15,000–$40,000+.

Note: prices vary by region, soil, access, and local permit costs. Always treat these ranges as a starting point and get multiple quotes for your site.

What drives the price

  • Site accessibility and soil conditions: difficult terrain, rocky ground, or very fast-percolating soils can require more excavation, special drainage, or testing.
  • Drainfield size and type: a larger or alternative drainfield increases material and labor costs.
  • Tank material and size: concrete tanks tend to be more expensive up front than plastic, but lifecycle costs vary.
  • Permits, inspections, and design: some areas require licensed design work and multiple inspections, which adds to the cost.
  • Preparedness and site work: removing obstructions, grading, pressure grading, and reseeding or re-sodding after work adds to the price.
  • Future maintenance considerations: options like effluent filters, pump chambers, or monitoring systems add initial cost but may save on long-term maintenance.

Common cost components

  • Site evaluation and soils testing: percolation tests, soil logs, and basic hydrology assessments.
  • System design and plan approval: engineer or licensed designer (where required).
  • Permits and impact fees: local fees for installation and inspections.
  • Tank supply and delivery: tank material, size, and delivery to site.
  • Excavation and trenching: earthmoving, safety shoring, and access work.
  • Drainfield installation: trenching, piping, gravel bedding, and distribution components.
  • Backfill, compacting, and restoration: soil replacement and lawn/landscape repair.
  • Connections and startup: piping to house, venting, inspection, and initial system start-up.
  • Contingency for site issues: rock removal, water table management, or dewatering if needed.

Step-by-step: What happens during installation (overview)

  1. Arrange permits and plan: confirm design, access, and any required approvals.
  2. Test and design: soil tests guide tank size and drainfield layout.
  3. Prepare the site: clear obstructions, grade as needed, and set staging.
  4. Install tank and drainfield: place tank, trench and lay drain lines, backfill, and cover.
  5. Inspect, connect, and start: final inspections, hookups to house, and system start-up with a test.

Quick budgeting tips

  • Get 3–4 written quotes to compare scope and included items.
  • Confirm what's included in each quote (tank, fabric, backfill, restoration, permit fees, inspections).
  • Ask about long-term costs: pumping frequency, maintenance, and any required filters or alarms.
  • Plan for weather-related delays and potential soil remediation needs.
  • Consider future needs: larger home or added fixtures may require a bigger or upgraded system later.

Typical timeline considerations

  • Scheduling: permitting and design can take a few weeks; installation itself often 1–3 days, with additional time for inspections.
  • Weather impact: heavy rain or frozen ground can delay earthwork or trenching.

Common misperceptions to watch for

  • "All tanks are the same": tank material affects cost and longevity, plus maintenance needs.
  • "If I can't see the drainfield, it's cheap": subsoil, depth, and access influence price as much as the visible components.
  • "Permits aren't necessary" is rarely true—license and code compliance protect your investment.

How Often Do You Need Septic tank installation

Typical lifecycle for a septic tank installation

Most homes will have a septic tank installed once, typically during construction or when purchasing rural property. Lifespan depends on tank material, size, usage, and soil conditions. In general:

  • Concrete tanks: often 40+ years
  • Fiberglass: 30-40 years
  • Steel: 15-25 years (more prone to corrosion)
  • Overall system life commonly 20-40 years with good maintenance

Key takeaway: you're unlikely to need a brand-new installation every few years unless something goes seriously wrong or you're renovating and expanding.

Signs you may be entering replacement territory

If you notice multiple warning signs, a new installation may be on the horizon rather than a simple repair.

  • Frequent backups and slow drains despite pumping
  • Wet, soggy spots or foul odors over the drain field
  • Standing water or lush vegetation over the drain field
  • Visible tank damage, cracking, rust, or heavy sludge
  • Effluent surfacing or discharging to driveways, gutters, or nearby property
  • A system that's repeatedly failing or requires increasingly costly repairs

Replacement vs repair: what triggers a new install

Many issues can be repaired, but certain conditions require a new installation (or a significantly upgraded system).

  • Severe tank failure (cracked or collapsed tank)
  • Leach field (drain field) failure that cannot be rehabilitated
  • Inadequate capacity after major home additions (extra bedrooms, baths, or heavy load)
  • Soil or groundwater conditions that render the current design unsafe or noncompliant
  • New local code requirements that necessitate redesign or relocation

How often homeowners should plan for installation

For most homeowners, septic installation is a one-time question unless plans change.

  • Typical system life: 20-40 years, depending on materials and maintenance
  • Replacement timing may occur with major renovations or if the site cannot support the existing design
  • Regular inspections and proactive pumping can delay or prevent emergency replacements

Maintenance to extend the life of your tank

Good routine care buys you years of dependable service.

  • Pump the septic tank every 3-5 years, or per the contractor's recommendation
  • Conserve water and spread out heavy uses (laundry, showers) to reduce load
  • Only dispose of toilet paper; avoid solids, fats, oils, solvents, paints, wipes, and chemicals
  • Keep heavy equipment off the drain field and protect roots from nearby trees
  • Use septic-safe cleaners and products as advised by your pro
  • Schedule periodic professional inspections to catch issues early

Quick planning steps if replacement is needed

If a replacement or major upgrade is on the table, follow these steps.

  1. Schedule a full evaluation with a licensed septic contractor to confirm the need
  2. Have a soil/perc test and site assessment done if required by your area
  3. Obtain design plans and local permits; factor in setbacks, access, and weather
  4. Develop a budget and timeline, including potential contingencies for weather or site conditions

When to Call a Professional

Immediate red flags that require a pro now

  • Sewage odors around fixtures, yard, or near the tank or drain field
  • Backup or slow drains, toilets that won't flush, or wastewater pooling in the yard
  • Gurgling sounds from toilets or sinks
  • Wet, unusually green or spongy spots over the drain field
  • Standing water or saturated soil near the septic tank or leach field after rainfall
  • Recent changes in water use or household plumbing, especially if the system is old

Routine maintenance triggers you shouldn't DIY

  • Scheduling a professional inspection at least once a year, even if nothing seems wrong
  • Pumping every 3–5 years (more often for smaller tanks or larger households, or if you have a garbage disposal or lots of solids)
  • Cleaning or replacing effluent filters and inspecting baffles, lids, and access risers
  • Checking for cracks, leaks, or signs of deterioration in the tank and pipes
  • Verifying the drain field's performance and soil absorption with specialized tests

After severe weather or flooding

  • High groundwater or floodwaters near the system, which can saturate the drain field
  • Sump pump or yard drainage that directs water toward the septic area
  • Sudden changes in performance after a storm or rapid temperature shifts

For installation or major system work

  • New construction or additions that increase daily water use
  • Drain field relocation, replacement, or upgrading components (tank, lids, pumps, or filters)
  • Changes in soil conditions, slope, or lot grading that affect effluent dispersion
  • Replacing damaged or failing components, or designing a system for expanded capacity

What a professional will check and do during a visit

  • Visual and mechanical inspection of the tank, lids, and access points
  • Verification of tank integrity, baffles, and connections for leaks
  • Measurement of tank depth and soil conditions at the drain field
  • Functional tests of pumps, alarms, and any mechanical components
  • Inspection of effluent lines for blockages or damage
  • Camera inspection of buried pipes if blockages or unusual flow is suspected
  • Review of permits, installation history, and recommended maintenance plan

How to prepare for the visit

  • Have your address, tank size, system type (single-compartment or multi-compartment), and last pumping date handy
  • Note any symptoms, dates, and areas affected (fixtures, yard, indoors)
  • Clear access to the tank lids, to the drain field boundary, and around outdoor components
  • Gather any previous inspection reports or maintenance records
  • Ensure pets are secured and outdoor work areas are safe for technicians

Quick action steps if you suspect a problem

  1. Limit water use and avoid pouring fats, oils, or harsh chemicals down drains
  2. Do not attempt to pump or open the tank yourself if you're not trained; risk of exposure and injury is real
  3. Call a licensed septic professional to diagnose and recommend a plan, including safety precautions and any required permits

When installation work is essential

  • If you're building a new home, upgrading an aging system, or adding bathrooms, trusted professionals handle design, permits, and proper sizing
  • A pro will ensure code compliance, avoid later failures, and minimize disruption to your property

Key benefits of timely professional involvement

  • Prevents costly damage from overflows or failed drain fields
  • Prolongs the life of the system with proper maintenance and timely replacements
  • Keeps you compliant with local codes and environmental safeguards
