Ultimate Guide to Drain field installation

Last updated: Mar 21, 2026

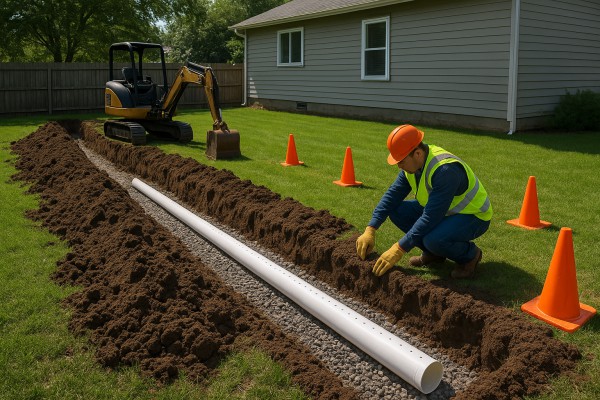

Drain field installation

Drain field installation

What a drain field does

Your drain field is the final stage of treating wastewater from your septic system. It distributes liquid effluent into the soil where natural processes remove pathogens and nutrients before they reach groundwater. A properly designed and installed field protects your home's foundation, keeps odors at bay, and helps prevent backups in your home.

  • Final treatment zone in a septic system
  • Disperses effluent evenly to prevent pooling
  • Relies on soil biology to filter and cleanse wastewater

How it works

A typical drain field uses buried pipes with perforations that release effluent into the surrounding soil. Over time, the soil and micro-organisms do their work, removing contaminants before the liquid re-enters the groundwater.

  • Distribution box splits flow to multiple trenches
  • Perforated pipes run through a gravel or media bed
  • Soil beneath and around the trenches acts as a natural filter
  • Protective cover and vegetation help keep the system functioning

Common drain field styles

Different soils and lots call for different layouts. Your installer will help choose what makes sense for your property.

  • Gravel trench system: the classic design with trenches, gravel, and perforated pipe
  • Mound system: raised, above-grade installation used when soil is shallow or unsuitable at grade
  • At-grade bed or drip dispersion: alternative approaches for limited space or long-term maintenance

What affects the installation

Several site conditions determine the size, type, and layout of your drain field.

  • Soil percolation rate and texture (sand drains faster than dense clay)
  • Water table level and seasonal groundwater
  • Slope and drainage patterns across the yard
  • Lot size, setbacks from wells, decks, and driveways
  • Local codes, permit requirements, and inspection processes

The planning steps

A thoughtful plan helps you avoid surprises and keeps the project on track.

  1. Get a licensed evaluation and soil test
  2. Review feasible design options and their costs
  3. Check local permitting and inspection requirements
  4. Plan for site access and minimize yard disruption
  5. Choose a qualified contractor and review warranty/maintenance terms
  6. Align on a realistic installation timeline and drainage restoration plan
  7. Your installer will handle approvals and coordinate with the utility and health departments as needed.
  8. Consider future landscaping needs and how to protect the field during and after installation.

What to expect during installation

Knowing what happens can reduce stress and help you prepare.

  • Site prep: clearing and marking the area, protecting existing landscaping
  • Excavation: trenches or mound area excavated to the required depth
  • Assembly: gravel or media bed, distribution box, perforated pipes, fabric separator
  • Backfill and cover: soil replaced, grass or ground cover restored
  • Inspections: field tests and inspector check at key stages
  • Clean-up: staging areas removed, yard restored as much as possible

Maintenance and long-term care

A drain field isn't a "set it and forget it" system. Ongoing care protects your investment.

  • Follow a regular septic pumping schedule based on household use
  • Avoid flushing non-biodegradable items, excessive chemicals, or greases
  • Do not drive or park on the drain field; keep heavy equipment away
  • Maintain vegetation with shallow-rooted plants to prevent root intrusion
  • Watch for signs of trouble: soggy spots, depressions, or strong odors; address promptly with your septic pro
  • Post-installation monitoring: routine inspections help catch issues early and extend the field's life
  • Seasonal considerations: winterized systems, snow cover, and freeze protection support long-term performance

Signs You Need Drain field installation

Visible yard and soil indicators

  • Soggy patches or standing water in the area above the drain field, especially after rain or irrigation.
  • Soil that remains wet longer than 24–48 hours after a rainfall.
  • Patches of unusually lush, green grass over the suspected drain field compared with the rest of the lawn.
  • Spongy, compressible soil that sinks when you step on it or roots that seem to loosen the soil.
  • Erosion or soft, muddy areas showing up where the system sits, sometimes with a faint sewer odor.
  • Poor drainage in nearby areas that doesn't improve with time, suggesting the field can't absorb effluent properly.

Indoor plumbing clues

  • Slow drains or backups in multiple fixtures (toilets, sinks, showers) even when the plumbing is clear.
  • Gurgling sounds in pipes when water is used elsewhere in the house.
  • Noticeable sewage smells in bathrooms, basements, or near the septic tank area.
  • Wastewater taking longer to flush or leaving solids behind—frequent plunging or snaking without a lasting fix.
  • Water bubbling or unusual dampness near basement floors or laundry areas, which can indicate pressurized or leaking effluent.

System age and performance indicators

  • An unusually short interval between pump-outs (for example, pumping the septic tank every 1–2 years or more frequently than typical) suggests the drain field isn't absorbing effluent as it should.
  • Persistent wetness, dampness, or green growth directly over the drain field area, even without heavy rain, signals ongoing soil saturation.
  • Noticeable changes in lawn grade or soil compaction over the drain field that don't align with normal yard conditions.
  • The septic system is older (often 20+ years) and shows multiple signs of declining performance, indicating the drain field may be nearing end of life.

What to do if you notice signs

  1. Minimize water use and avoid heavy discharges. Space out large water uses (laundry, dishwashing) and fix leaks to reduce load on the system.
  2. Keep people and heavy equipment off the drain field. Parking, driving, or heavy foot traffic can compact the soil and worsen drainage.
  3. Schedule a professional evaluation. Call a licensed septic contractor or your local health department for an on-site assessment.
  4. Gather information for the visit:
    • Last tank pump date and pumping frequency.
    • Any odors noticed inside or around the house.
    • History of repairs, backups, or landscaping changes near the field.
    • Recent irrigation changes or new trees/roots nearby.
  5. Expect the pro to perform several checks:
    • On-site inspection of the septic tank, distribution box, and field lines.
    • Soil evaluation to verify absorption capacity and saturation in the drain field area.
    • Dye test or similar methods to trace effluent flow and identify leaks.
    • Possible percolation tests or camera inspections if needed.
  6. If the drain field is compromised, discuss options with the contractor:
    • Conventional drain field replacement in the same location, if feasible.
    • Alternative designs such as mound systems, sand-bed systems, or drip dispersal, depending on site conditions.
    • Consideration of advanced treatment units or secondary treatment options when space or soil isn't suitable.
  7. After remediation, establish a maintenance plan:
    • Regularly schedule tank pumping (typical interval depends on usage and tank size).
    • Use water-saving fixtures and spread out high-water activities.
    • Protect the area from heavy soil disturbance, root intrusion, and future construction that could impact soil permeability.

How Drain field installation Works

What the drain field does

The drain field, or leach field, is the part of the septic system that treats liquid effluent after it leaves the septic tank. It uses a network of perforated pipes buried in gravel-filled trenches. Wastewater trickles from the pipes into the surrounding soil, where microbes and soil filters remove pathogens and nutrients before the water re-enters groundwater or the surface.

Step-by-step installation

  1. Site evaluation and design
  2. The pro checks soil type, groundwater level, slope, and setback distances. A percolation test helps determine how quickly the soil will absorb effluent, which guides trench spacing and gravel depth.
  3. Permits and plans
  4. Local health departments review the design. They require accurate trench layouts, materials lists, and a schedule for inspections during the install.
  5. Excavation of trenches
  6. Trenches are dug to the correct depth and width, spaced according to the design. Care is taken to avoid shallow beds and to keep utilities protected.
  7. Base preparation
  8. A compact, stable base is created with gravel or crushed stone. A geotextile fabric may be laid to separate the soil from the aggregate and to prevent clogging.
  9. Pipe placement and distribution
  10. Perforated PVC or HDPE pipes are laid with a steady slope (usually about 1/8 to 1/4 inch per foot). Pipes are connected to a distribution box that evenly sends effluent into each trench.
  11. Backfill and trench restoration
  12. Trenches are backfilled with clean aggregate or the original soil, then covered with soil and graded to shed water. Final surface grading directs runoff away from the bed.
  13. Inspection and startup
  14. A field inspector checks trench width, gravel depth, pipe slope, and seal integrity. After passing, the system is slowly started, and the site is monitored for any signs of leakage or poor drainage.

Key components

  • Septic tank: holds and partially digests solids before effluent moves on.
  • Distribution box: balances flow to multiple trenches.
  • Perforated pipes: collect and evenly release effluent into the trenches.
  • Gravel/aggregate: provides drainage and a medium for filtration.
  • Trench and bed: space where treatment occurs in the soil.
  • Geotextile fabric: helps keep fines out of the gravel, preserving drainage.
  • Soil absorption area: the active zone where treatment finishes.

Site preparation and design considerations

  • Soil type: Sandy loam drains well; clay soils require more specific design or alternative disposal methods.
  • Drainage and grading: surface runoff should be directed away from the field.
  • Depth to water table and bedrock: shallow groundwater can limit system size or require a raised bed.
  • Vegetation and root intrusion: select low-growing, non-invasive plants nearby; avoid deep-rooted trees.
  • Maintenance access: keep the area clear for future inspections, pumping, and seasonal testing.

How it works in practice

  • After the tank settles, effluent enters the field at a controlled rate. The gravel acts as a filtration medium, while the soil microbiology completes treatment as water percolates downward. Proper slope ensures even distribution; proper size and spacing prevent overloads and prolong field life.

Maintenance and monitoring

  • Regular pumping of the septic tank keeps solids from filling the system. Monitor for surface odors, unusually damp areas, or lush, green patches that might indicate leaks. Keep heavy vehicles off the field to avoid soil compaction, and have periodic inspections to verify proper function and soil absorption capacity.

Typical Drain field installation Costs

What factors influence price

  • Soil and site conditions: Percolation rate, slope, groundwater level, and run-off control all affect field size and materials.
  • System type: Conventional trench/bed fields are usually less expensive than mound systems or hard-to-absorb-site designs like pressure distribution.
  • Tank work and pumps: If a new septic tank, pump chamber, or lift station is needed, costs increase.
  • Permits and inspections: Local fees and required engineering add to the bottom line.
  • Access and disruption: Limited access, difficult dig sites, or heavy landscaping restoration can raise labor and restoration costs.
  • Local labor and material costs: Regional wage rates and supply availability drive bids up or down.

Typical price ranges, by system type

Note: these ranges reflect installed drain field work and do not include a new septic tank, pump, or advanced treatment components. Always compare bids with the same scope of work.

  • Conventional trench or bed drain field: $3,000–$8,000
  • Conventional trench with enhanced design (additional trenches, depth, or gravel): $4,000–$9,000
  • Pressure distribution system (with pump chamber or lift system): $7,000–$18,000
  • Mound system (required on poor soils, high water table, or strict setbacks): $15,000–$40,000
  • Complex or challenging sites (limited access, severe slope, or required engineering): $12,000–$25,000+

These figures are ballpark ranges and can vary significantly by region. Ask for bids that specify the same scope, including soil tests, trench lengths, materials, and restoration.

What's included in a bid (cost components)

  • Site prep and soil testing/perc test
  • Excavation, trenching, and grading
  • Drain field gravel, pipe, and geotextile fabric
  • Distribution components (knee/angle fittings, distribution box)
  • Final backfill, surface restoration, and seeding or sod replacement
  • Permits, plan review, and inspections
  • Start-up testing and system commissioning

Budgeting steps (how to plan)

  1. Confirm scope: Ensure every bid covers the same field size, trench length, materials, and restoration.
  2. Get multiple bids: Seek at least 3 bids from licensed septic contractors.
  3. Check credentials: Verify licenses, insurance, and references.
  4. Plan for contingencies: Add 10–20% to cover unexpected conditions like poor soil or groundwater interception.
  5. Consider long-term value: A slightly higher upfront cost may mean a field that lasts longer and requires less maintenance.

Quick planning and saving tips

  • Request bids that include identical scope and a detailed materials list for easy comparison.
  • Favor contractors who perform soil tests and provide percolation data; a properly sized field saves money later.
  • Schedule work during dry seasons to avoid weather delays that drive labor costs.
  • If space allows, design the system with future maintenance in mind (accessible distribution boxes, clear access paths).
  • Combine architectural or landscaping projects to reduce mobilization charges and restore landscape efficiently.

Real-world scenarios (ballpark examples)

  • Small lot with adequate soil and gravity feed: conventional trench, $3,500–$6,500.
  • Suburban lot with moderate soil constraints: trench with enhanced design, $5,000–$9,000.
  • Property with high water table or poor soils: mound system, typically $20,000–$35,000.
  • Site requiring pressure distribution for even moisture and performance: $9,000–$18,000.

These estimates help you set a realistic budget, but the exact price hinges on your soil, local codes, and the contractor's approach.

How Often Do You Need Drain field installation

How long does a drain field last?

A well-built drain field typically lasts 20–30 years for a conventional system. Mound and alternative systems can push into the 25–35 year range, but actual life depends on soil conditions, household water usage, and how well you maintain the system. Sudden failures can happen earlier if a field is overloaded, water usage spikes, or roots penetrate the piping.

Signs you may need a new drain field

Watch for these indicators of trouble:

  • Standing water or soggy ground above or near the system
  • Slow drains, gurgling noises, or frequent backups
  • Sewage odors around the yard or tank risers
  • Lush, unusually green patches over the drain area
  • Effluent surfacing on the surface or in the treatment area
  • High groundwater or repeated rainfall causing field issues
  • The pump running more often than normal or warning lights on the control panel

Common timelines by system type

  • Conventional drain field: typically 20–30 years
  • Mound system: often 25–35 years, depending on maintenance and soil
  • Advanced treatment systems with absorbent fields: lifespans can vary widely (often 15–25 years for components), with concurrent field performance playing a big role

Notes: real-world life is highly variable. The system's design, soil quality, and how you use the home have a bigger impact than the exact model.

Maintenance that can extend life

Proactive care matters as much as design. Consider:

  • Regular septic pumping every 2–3 years for most households; more frequently for homes with garbage disposals or heavy use
  • Conserving water: spread out laundry, use high-efficiency fixtures, fix leaks promptly
  • Protecting the drain field: keep vehicles and heavy equipment off the area; plant only shallow-rooted grasses, avoid trees or shrubs with aggressive roots nearby
  • Avoid chemical overload: use septic-safe cleaners and limit harsh chemicals
  • Filter maintenance: install and clean effluent screens as recommended
  • Address issues early: fix plumbing leaks and resolve drainage problems before they stress the field

Replacement vs. new installation: when to replace

  • Replace when diagnostics show persistent failure despite maintenance, or when soil absorption tests indicate failure
  • In some cases you can rehabilitate part of the system, but many homeowners opt for a full drain field replacement or an alternative system (mound, at-grade, or other engineered solution) to restore performance
  • If home expansion occurs or soil conditions have degraded, a full replacement with modern design may be the best long-term fix

Step-by-step planning if you're considering replacement

  1. Get a licensed septic pro to assess the current system and confirm failure modes
  2. Have soil tests and percolation evaluations done to determine feasible designs
  3. Explore options: conventional replacement, elevated/at-grade field, mound system, or alternative technologies
  4. Check local codes and obtain required permits; discuss setback, lot constraints, and long-term maintenance
  5. Review installation timeframe and disruption plans with your contractor
  6. Install; follow with inspection and proper post-installation dosing and education

Practical planning tips

  • Budget for replacement by planning for both installation and required permits
  • Consider future needs (family size, add-ons, or efficiency upgrades) when selecting a system type
  • Schedule routine maintenance reminders so pumping and inspections stay on track

Typical questions homeowners ask

  • Can I extend my drain field life with additives? No proven long-term benefits; focus on proper pumping, water use, and avoiding overloads.
  • Can a new field be installed in the same place? Often, but depends on soil conditions and setback rules; a professional can advise.
  • How soon can we use the system after replacement? Most installations require a short curing and inspection period before use.

When to Call a Professional

Immediate red flags

  • You smell sewage or notice strong, persistent odors near the drain field or around the septic tank.
  • Surface water, mud, or effluent is pooling over the installed drain area, especially after rain.
  • Toilets or drains gurgle, drain slowly, or back up despite regular septic pumping.
  • Tree roots, heavy equipment, or recent construction appear to be encroaching on the drain field area.

Site and soil constraints that usually require a pro

  • High groundwater or perched water tables that limit absorption.
  • Dense clay soils or very poor percolation rates that complicate field design.
  • Sloped or rocky sites, limited space, or difficult setbacks to wells, streams, or property lines.
  • Past failures, known soil contamination, or prior drain-field repairs that need expert assessment.

Why a professional is essential

  • Design, permitting, and installation follow local codes and require licensed expertise.
  • Drain-field work involves careful trenching, bedding, backfill, venting, and proper pipe slope to perform reliably.
  • A pro can perform proper soil tests (perc tests or soil logs), hydraulics calculations, and post-installation testing to prevent future failures.

Information to have ready before you call

  • Property layout showing setbacks from wells, streams, buildings, driveways, and other utilities.
  • Estimated design flow (often based on bedrooms or household size) and recent septic pumping history.
  • Any previous drain-field issues, soil problems, or nearby renovations that could impact the site.
  • Access considerations: driveway width, overhead obstacles, and likely equipment access.

What to expect from a drain-field installation pro

  • Phase 1: Site evaluation, soil testing, and field design tailored to your lot.
  • Phase 2: Permitting, scheduling, and coordination with local inspectors.
  • Phase 3: Excavation of trenches, placement of gravel or sand beds, perforated pipes, and absorber media.
  • Phase 4: Backfilling, compaction per specs, bed protection, and surface restoration.
  • Phase 5: System start-up checks, inspections, and clear once-over on operation and maintenance needs.

When to call urgently

  • Any signs of sewage surfacing, strong odors, or backups that affect living spaces.
  • Sudden damp, mushy soil around the area with no rain—could indicate a compromised system.
  • Visible damage to pipes, tanks, or the field from heavy equipment or construction activity.

Do's and don'ts while you wait

  • Do avoid driving or parking heavy equipment on saturated soils over the drain field.
  • Do limit water usage during the installation process and follow any pump-down instructions from the installer.
  • Don't attempt to "DIY" the drain field installation or alterations; improper work can violate code and cause costly failures.
  • Don't ignore persistent symptoms like odors or wet spots—early professional assessment saves time and money.

Quick decision guide

  • If you have a confirmed soil/site constraint or any odor, backup, or surface effluent: call a professional.
  • If you're planning new construction, a septic redesign, or field expansion: engage a licensed septic contractor early in the process.
