Ultimate Guide to Gravity septic system

Gravity septic system

What it is

A gravity septic system uses the natural slope of the property to move wastewater from your home to the drain field without relying on pumps or pressure distribution. It's the most traditional and common setup in many residential areas, especially where the ground slope and soil conditions support straightforward gravity flow.

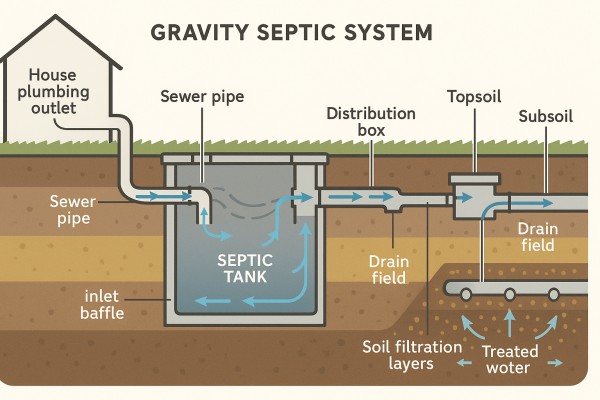

How it works

1. Wastewater leaves the house and enters the septic tank.
2. In the tank, solids settle to the bottom and scum rises to the top. Liquids (effluent) move on.
3. The clarified liquid exits the tank through an outlet and travels by gravity into a distribution box.
4. From the box, effluent flows into perforated pipes laid in shallow trenches (the drain field).
5. The pipes nourish the soil where beneficial microbes treat contaminants before water percolates down to groundwater.
6. The soil and roots, plus natural filtration, complete the treatment process over time.

Key components

• Septic tank: where solids separate from liquids. Regular pumping is essential to keep it functioning well.
• Distribution box: evenly routes effluent into the drain field.
• Drain field (absorption trenches): perforated pipes buried in gravel or aggregate, surrounded by soil.
• Perforated laterals: allow effluent to seep into the surrounding soil.
• Gravel or aggregate fill: provides a stable environment for distribution and airflow in the trenches.
• Backfill soil: covers and protects the drain field while allowing filtration.

Site and soil considerations

• Slope: gravity systems rely on a gentle downward slope from house to drain field.
• Soil percolation: soil must absorb and treat effluent at an appropriate rate. Very fast or very slow soils can cause issues.
• Depth to groundwater or bedrock: shallow water tables or hard layers can limit drain-field placement.
• Setbacks: consider wells, streams, driveways, and property lines as required by local code.
• Load expectations: household size and daily water use influence tank size and drain-field area.

Sizing and layout basics

• Tank size typically ranges from 1,000 to 2,000 gallons, based on household size and local rules.
• Drain-field area increases with higher wastewater flow and soil absorption capacity.
• Local codes dictate setback distances, mound options, and required inspections.
• A licensed pro can confirm that a gravity design matches your slope, soil, and usage.

Pros and cons

• Pros:
  • Simple design with few moving parts
  • No electricity needed to move effluent
  • Lower ongoing maintenance if functioning well
• Cons:
  • Requires adequate slope and soil conditions
  • Drain field performance hinges on soil health; poor soils can limit effectiveness
  • Less flexible if your lot lacks proper grade or becomes waterlogged

Maintenance and care

• Schedule regular septic pumping (intervals depend on tank size and usage).
• Conserve water to reduce hydraulic loading on the system.
• Protect the drain field from heavy loads, vehicles, and construction.
• Avoid flushing or pouring non-biodegradable materials, fats, oils, and chemicals.
• Have periodic inspections to catch issues like slow drains or soggy spots early.

Troubleshooting quick tips

• Slow drains or gurgling in plumbing: may indicate a loading or tank issue.
• Damp, foul-smelling spots on the leach field: possible drainage problem or over-saturation.
• Backup into sinks or toilets: could signal a clogged line or full septic tank.
• If you notice standing water or unusually lush grass over the drain field: call for an evaluation.

Common questions

• Can a gravity system work on flat property?

It can if the drain field is designed with proper elevation changes or if auxiliary measures are used, but very flat sites may require alternative approaches.

• How long does a gravity system last?

With good maintenance and soil health, many gravity systems function for decades, though periodic tank pumping and drain-field care are essential.

What Is a Gravity septic system?

How it works

• Wastewater from the house flows by gravity into the septic tank. There's no pump needed to move the wastewater into the tank.
• Inside the tank, solids settle to the bottom, fats and oils rise to the top, and a clearer middle layer (effluent) flows out.
• The outlet is designed to prevent solids from leaving the tank. The effluent then travels by gravity to the drainfield through a distribution system.
• In the drainfield, effluent is released into perforated pipes laid in gravel-filled trenches. The soil beneath and around the pipes acts as a natural treatment system.
• As the effluent percolates through the soil, bacteria and natural processes remove many pollutants before the water re-enters the groundwater or evaporates from the surface.

Key components

• Septic tank: a continuous-flow tank where solids settle and scum forms. It's usually concrete, fiberglass, or polyethylene.
• Baffles or tees: fittings inside the tank that help direct flow and keep solids from exiting.
• Effluent filter: an optional screen at the outlet to catch smaller solids.
• Distribution box (D-box): evenly distributes effluent to multiple drainfield lines.
• Drainfield (absorption field): a network of perforated pipes in gravel-filled trenches buried in the soil.
• Soil layer: natural filtration and treatment that removes many pathogens and nutrients.
• Access risers and lids: built for easy pumping, inspection, and maintenance.

When gravity is a good fit

• The site has adequate slope and soil that can absorb and treat effluent.
• You want a simpler, lower-cost option without a pump chamber.
• You prefer a system with fewer moving parts (relying on gravity rather than pumps).

Sizing basics

• Tank capacity varies with household size and local code, but common configurations for typical homes use a 1,000–1,500 gallon septic tank.
• Drainfield size depends on soil percolation rate and local regulations; soil with good absorption allows a smaller area, while slower soils require more trenches.
• Expect pumping every 3–5 years for a typical family, though usage, furnishings, and water habits can shift that schedule.

Pros

• Fewer moving parts and no pump in the main flow path.
• Generally lower initial cost than some pump-assisted or mound systems.
• Quiet operation and simple maintenance plan (pump every few years, inspections).

Cons

• Requires suitable soil and slope; failures are often soil-related.
• Drainfield health depends on steady water use and avoiding overload from heavy discharges.
• If the soil is too compacted or poorly draining, the system may require remediation or upgrade.

Care and maintenance

• Pump the septic tank every 3–5 years (frequency depends on tank size, household usage, and local guidance).
• Schedule annual inspections to check tank condition, baffles, and the effluent filter if present.
• Use water efficiently: fix leaks, spread laundry and dishwasher loads, and consider high-efficiency fixtures.
• Protect the drainfield: keep heavy equipment off the area, prevent tree roots near lines, and maintain a healthy grass cover.
• Avoid pouring chemical cleaners, solvents, grease, paints, pesticides, or non-biodegradable items down drains.

Signs of trouble

• Slow drains, gurgling sounds in pipes, or frequent backups.
• Odors around the drainfield or near the tank.
• Wet, soggy spots or lush growth over the drainfield area.
• Backups that don't respond to standard clearing methods.
• Surprising high water bills or unusually rapid tank fill.

What to plan for if you have or are considering a gravity system

• Have soils and site evaluated by a licensed pro to confirm gravity drainage is suitable.
• Keep up with routine pumping and inspections to extend life and prevent costly failures.
• If soil conditions change or the drainfield signs fail, consider options like alternative drainfield strategies or a system upgrade with professional guidance.

Components of a Gravity septic system?

The septic tank

• Primary treatment chamber where solids settle to the bottom and lighter fats/grease float to the top (scum layer).
• Usually one or two compartments with inlet and outlet baffles to keep solids from exiting and to guide liquid toward the outlet.
• The tank is watertight, typically made of concrete, fiberglass, or polymer, and sits underground with access lids or risers for pumping and inspection.
• Inside the tank, anaerobic digestion begins breaking down organic matter, reducing waste before it reaches the drain field.

Inlet and outlet baffles and tees

• Inlet baffle slows the incoming flow and helps trap solids, protecting the outlet from solids swirl.
• Outlet baffle directs clarified effluent toward the outlet pipe and prevents settled solids from leaving the tank.
• Properly positioned tees and baffles are critical for long-term performance and preventing premature drain-field clogging.

Effluent filter (where present)

• A screen installed at the tank's outlet to catch fine solids before effluent leaves the tank.
• Reduces solids entering the drain field, helping extend field life and lowering maintenance needs.
• Requires periodic cleaning during pumping or maintenance visits.

Access risers and lids

• Riser extensions bring the tank in reach of grade so you can service it without digging.
• Lids or access covers provide secure, weatherproof access for pumping, inspection, and maintenance.
• Properly sealed access helps prevent odors and groundwater intrusion.

Pipe connections (inlet and outlet pipes)

• Inlet pipe carries wastewater from the house to the septic tank; outlet pipe carries clarified liquid to the drain field.
• Pipes are typically PVC or ABS, joined with watertight fittings to keep groundwater out and wastewater in.
• Slope and alignment are important to ensure smooth flow and prevent backups.

The distribution box (D-box)

• If there are multiple drainage trenches or laterals, the D-box helps distribute effluent evenly to each line.
• Aids in balancing flow so no single trench becomes overloaded.
• Often has multiple outlet ports and a simple adjustment screw or covers to service.

Drain field / soil absorption area

• The "leach field" where treated liquid exits the septic tank and percolates into the soil.
• Consists of trenches, beds, or mounds buried in the yard with proper slope to allow gravity flow.
• The soil beneath must be permeable enough to absorb and filter effluent.

Perforated drain lines (lateral lines)

• Subsurface pipes with small holes or perforations that allow effluent to seep into surrounding soil.
• Typically run in gravel-filled trenches to promote even distribution and prevent clogging.
• Connected to the D-box or outlet piping to route effluent to all trenches.

Gravel or aggregate fill and filter fabric

• Gravel around the drain pipes provides a wide area for effluent to move into the soil.
• Filter fabric (geotextile) helps keep the trench from mixing with fine soils and reduces clogging.
• The size and depth of gravel can vary by local code and soil type.

Soil cover and topsoil

• After the drain field is installed, trenches are backfilled with soil and sometimes topped with topsoil or landscaping fill.
• Final grade should prevent surface water pooling over the field and maintain accessibility for future inspection.

Maintenance features and cleanouts

• Cleanouts may be installed along the house sewer line or near the tank to allow snaking if blockages occur.
• Some systems include access points to verify flow and help diagnose issues without excavating.
• Regular pumping (frequency based on usage and tank size) is essential to prevent solids buildup that can clog the field.

Field venting and surface features (where present)

• Some installations include venting near the trenches to vent gases, though most venting is handled by the home's plumbing stack.
• Surface features like vent pipes or cleanouts should be kept accessible and not buried under structures or landscaping.

System layout and gravity flow principles

• Everything relies on gravity: wastewater moves from the house to the tank, then from the tank to the drain field without pumps.
• Proper slope, spacing, and soil compatibility are key to long-term performance and avoiding backups or fouled fields.

When a Gravity septic system Is Used

Soil and Site Conditions

• Gravity systems rely on a natural slope and soil that can absorb effluent from the tank to the drain field without pumps. If the site lacks either, gravity may not be feasible.
• Suitable soils: loamy sands to loams with reasonable permeability. Heavy clays or soils with restricted layers can hinder infiltration and may require alternative designs or soil modifications.
• Groundwater and bedrock: ensure ample vertical separation between the drain field and seasonal high water tables or bedrock. Most codes require an adequate unsaturated zone above the drain field to prevent backing up into the tank or surface water issues.
• Restrictive layers: avoid sites with perched water, dense clay layers, or compacted subsoil in the drain-field zone, as these impede proper drainage.
• Site slope and access: a gentle downward slope from the house to the drain field helps gravity do the work. Extremely flat or irregular terrain can complicate gravity flow.
• Setbacks and location: plan for sufficient space for the drain field away from wells, streams, property lines, and structures, following local setback rules.

System Layout and Sizing

• A gravity-based layout is typically simple: a septic tank, gravity-fed outlet to a distribution box, and perforated pipes in trenches for the drain field. No pumps or lift stations are required.
• Sizing basics: the tank and drain-field dimensions depend on:
  • estimated daily wastewater flow (household size and fixture use),
  • soil percolation rate, and
  • local code requirements.
• Design steps (typical workflow):
  1. Conduct soil percolation tests to confirm soil suitability.
  2. Estimate daily design flow based on how many people live in the home and expected usage.
  3. Size the septic tank and drain-field trenches to provide adequate storage and infiltration capacity.
  4. Plan trench layout, spacing, distribution (if multiple trenches), and setback clearances.
• Limitations: if the site has poor percolation or insufficient vertical separation, gravity flow may not be feasible without redesigning the field or adding pumping components.

Typical Scenarios Where Gravity Is Used

• New homes on land with suitable soil and a clear downward slope toward a drain field.
• Rural properties where a gravity-fed drain field can be laid out without pumping equipment.
• Remodels or expansions where existing soils and layout can support gravity flow without major system changes.
• Projects seeking a lower upfront cost and fewer moving parts, provided soil and site conditions permit gravity operation.

Pros and Cons at a Glance

• Pros:
  • Fewer moving parts; minimal or no electrical requirements.
  • Generally lower upfront installation cost than pumped or pressure-dosed systems.
  • Fewer components to maintain over time.
• Cons:
  • Not all soils or sites are suitable.
  • Requires proper drain-field sizing and setback placement.
  • Any future changes in groundwater or nearby development can affect performance.

Typical costs of a Gravity septic system

Typical price range

Typical installed costs for a conventional gravity septic system on a standard residential lot generally run in the broad range of about $7,000 to $15,000. In areas with higher labor costs, limited access, or challenging soils, prices can climb to $20,000 or more. On very simple sites with good soil and easy access, you might see lower numbers, roughly $5,000 to $10,000, but most homeowners land somewhere in the mid-to-high end of the range after permitting, design, and installation are included.

Cost breakdown by major components

• Septic tank: $600–$3,000 for the tank itself; installation adds about $1,000–$3,000 depending on tank type (concrete, plastic, fiberglass) and local labor rates.
• Drainfield (gravity-fed leach field): $3,000–$12,000 or more. Cost varies with trench length, soil conditions, gravel, piping, and the total absorption area required by code.
• Permits, design, and inspections: $500–$2,500. Fees depend on your town or county, and whether an advanced design or engineer is involved.
• Excavation and site preparation: $2,000–$6,000. This covers trenching, grading, and restoring any damaged turf, driveways, or landscaping.
• Materials and miscellaneous: $200–$1,000 for fittings, risers, lids, and other small items.

Regional and site factors that influence price

• Soil and groundwater: Poor percolation or high water tables often require larger drainfields or alternative designs, driving up costs.
• Site access: Limited access, rocky terrain, or sensitive landscaping can add hours of labor and equipment rental.
• Drainfield size requirements: Codes dictate minimum absorption area; larger lots or stricter jurisdictions can push the price up.
• Local permitting rules: Some regions require extra steps, inspections, or professional design, affecting overall cost.
• Contractor competition and availability: In rural areas with few septic specialists, bids may be higher or lead times longer.

Hidden costs to plan for

• Perc tests, soil evaluations, or engineering fees if required by your health department or HOA.
• Tank abandonment or reuse costs if reworking an older system (possible need to decommission the old tank).
• Landscaping restoration after excavation (sod, grading, reseeding).
• Future maintenance: annual or semiannual pumping, usually every 3–5 years for households on conventional systems.
• Potential soil testing or monitoring wells if the site requires monitoring during installation.

Budgeting in 4 practical steps

1. Get a site evaluation and perc tests early to inform the design and size of the drainfield.
2. Gather at least 3 bids with identical scope so you're comparing apples-to-apples (design, tank, drainfield, permits, and labor).
3. Add a 10–20% contingency for unseen site conditions (rock, groundwater, or code changes).
4. Include ongoing maintenance costs in your long-term plan (pumping every 3–5 years, inspections, and potential future repairs).

Example scenarios (ballpark guidance)

• Scenario A: Moderate site, average soils, standard driveway access: $8,000–$12,000 total installed.
• Scenario B: Challenging soil with deeper excavation needs and modest access: $12,000–$18,000.
• Scenario C: Very tight site, rocky terrain, higher permit complexity: $18,000–$25,000 or more.

Quick reference: what to ask your installer

• What size tank do you recommend, and why?
• How much drainfield area is required and what factors drive that size?
• Are permits, inspections, and design included in the bid?
• What maintenance plan do you suggest after installation?
• What contingencies do you build into the project for site conditions?

Maintenance Requirements

Regular pumping and professional inspections

Gravity septic systems rely on keeping solids contained in the tank. Have a licensed septic professional inspect and pump the tank on a regular schedule. Typical guidance for a standard residential 1,000-gallon tank is every 3–5 years, but usage, tank size, and household size can shift that window. In homes with heavy disposal use (lots of garbage disposal activity, many guests) or smaller tanks, plan for more frequent service.

During the service, the pro will:

• measure sludge and scum depths
• inspect tank baffles and joints for cracks or leaks
• verify the outlet is clear and transfer to the drainfield is flowing properly
• check if an effluent filter (if present) needs cleaning or replacement

After pumping, keep a simple maintenance log: date, tank size, pumping company, and the next due date.

Water usage and household habits

Reducing wastewater volume protects the tank and drainfield. Try these practical steps:

1. Spread out heavy water use across the day; avoid back-to-back loads of laundry and long showers.
2. Fix leaks promptly (a dripping faucet or running toilet wastes thousands of gallons annually).
3. Use septic-safe products and avoid flushing wipes, diapers, cotton swabs, feminine products, oils, paints, solvents, or harsh cleaners.
4. Run full loads and install water-saving fixtures (low-flow faucets, showerheads, and toilets).

Drainfield protection

The drainfield is the living heart of a gravity system. Protect it with these practices:

• Keep vehicles, structures, and heavy equipment off the drainfield to prevent soil compaction.
• Plant only shallow-rooted grass; avoid trees and deep-root shrubs within the area or according to your pro's guidance.
• Direct surface water away from the drainfield and ensure the area drains properly; fix pooling or soggy spots promptly.
• Minimize chemical inputs near the field; apply fertilizers and pesticides only as needed and at recommended rates, away from the drainfield.

System components checks

Your gravity system may include a few key components that deserve occasional attention:

• Inlet and outlet baffles: look for cracks or deterioration and have them repaired if needed.
• Effluent filters: if installed, clean per the manufacturer's schedule (often annually) and replace if damaged.
• Distribution box: ensure even distribution; look for standing water, cracks, or soil mounding that could indicate misdistribution.
• Access ports: keep manholes or lids accessible for future inspections; note any strong odors near the tanks.

Seasonal and weather considerations

Weather can stress a septic system. Plan for these patterns:

• After heavy rains or rapid snowmelt, watch for surface dampness or pooling near the drainfield; restricted drainage can slow absorption.
• In freezing climates, prevent frost-related issues by keeping inspections and pumping up-to-date; avoid dumping large amounts of ice melt or solvents near the system.
• If you notice abnormal wet areas, gurgling drains, or sewage odors, call a professional promptly rather than attempting DIY fixes.

Quick signs that you need service

• Slow drainage or frequent backups
• Foul odors around the septic area
• Lush, green vegetation over the drainfield or wet, soggy ground
• Sewage backups in toilets or drains despite normal use
• Cracks in the tank or lid, or obvious damage to components

Keep these checks on a simple calendar and align them with your local requirements.

Common Problems With a Gravity septic system

Clogged or overloaded septic tank

• Symptoms: slow drains, frequent backups, gurgling noises in plumbing, water pooling near the tank or cleanout.
• Causes: solids building up because the tank isn't pumped on schedule; flushing large amounts of non-dispersables (even "flushable" products); excessive toilet paper; heavy short-cycle use.
• What to do:
  1. Schedule a licensed septic technician to pump out the tank and inspect baffles.
  2. Cut back on solids: use minimal toilet paper, dispose of non-degradable items properly.
  3. Space out heavy water use (laundry, showers, dishwashing) and avoid running multiple fixtures at once.
  4. Have the tank inspected for cracks or failed baffles, which can let solids slip into the drain field.

Drain field showing signs of failure

• Symptoms: soggy or spongy soil above the absorption area, foul odor near the field, unusually lush vegetation on and around the leach field.
• Causes: overloading the system, poor soil percolation, root intrusion, or damaged pipes.
• What to do:
  1. Reduce water use immediately to relieve the field.
  2. Have a professional assess soil absorption and field integrity (may require soil testing or dye tests).
  3. If failure is confirmed, options include repairing damaged trenches, replacing or redesigning the drain field, or upsizing the system if permitted.
  4. Remove or mulch trees/large shrubs whose roots threaten the lines.

Root intrusion and buried pipe damage

• Symptoms: slow drains, damp patches over the drain field, unusual odors, or visible cracks in pipes or concrete.
• Causes: roots seeking moisture; shifting soil; crushed or broken pipes.
• What to do:
  1. Get a camera inspection to locate intrusions or breaks.
  2. Have roots cut away and damaged pipes repaired or replaced.
  3. Implement root barriers and replant away from the drain lines.

Inlet/outlet baffles or tees failing

• Symptoms: solids found in the outlet effluent, pronounced scum buildup at the tank's inlet, poor separation.
• Causes: age, impact of heavy use, physical damage.
• What to do:
  1. Have a pro inspect and replace damaged or missing baffles/tees.
  2. After replacement, have the tank pumped if solids are still high.
  3. Confirm proper flow direction to protect the drain field.

Overloading and improper water use

• Symptoms: backups after a period of heavy use, water level fluctuations in the tank, slow drains.
• Causes: excessive laundry, long showers, leaks, or irrigation exceeding design limits.
• What to do:
  1. Spread out laundry across the week; fix leaks promptly.
  2. Install or upgrade to high-efficiency fixtures and irrigation controllers.
  3. Monitor and limit irrigation during wet seasons to avoid saturating the field.

Groundwater infiltration and seasonal issues

• Symptoms: field remains damp after rain, delayed drying, or foul odors during wet periods.
• Causes: high water table, poor drainage around the site, heavy rainfall leading to influx into the system.
• What to do:
  1. Improve site drainage around the drain field and septic tank area.
  2. Avoid work around the field during saturated conditions.
  3. Have the system evaluated for capacity versus current rainfall and soil conditions; adjustments may be needed.

Aging components and structural wear

• Symptoms: unexpected backups, cracks or corrosion in tanks, brittle lids, or difficult access.
• Causes: typical wear over decades; concrete or steel degradation.
• What to do:
  1. Schedule a professional inspection if the system is older (often 15–20+ years).
  2. Plan for component replacement or complete system upgrade as recommended by a pro.
  3. Maintain a replacement schedule to avoid sudden failures and costly repairs.
