Ultimate Guide to Advanced treatment septic systems

Last updated: Mar 21, 2026

Advanced treatment septic systems

What an ATS does for your home

Advanced treatment septic systems (ATS) push beyond conventional septic to clean wastewater to higher standards before it returns to the ground. They're designed for challenging soils, shallow bedrock, high groundwater, or local codes that require extra treatment. In plain terms: you get cleaner effluent, which helps protect your soil and nearby water sources.

How ATS differ from conventional systems

Higher treatment performance: extra steps like aeration, filtration, or membrane barriers remove more solids, nutrients, and pathogens.
Built-in safeguards: many ATS include alarms, noisier pumps, and power needs to keep the system functioning properly.
More components to service: filters, screens, aerators, and sometimes disinfection units require regular attention.
Flexibility for tricky sites: ideal when soil percolation is slow or when lot constraints limit drainfield size.

Common types you may encounter

Aerobic Treatment Unit (ATU): uses air to boost biological breakdown, then sends treated water to a drainfield or polishing stage.
Membrane Bioreactor (MBR): combines a biological reactor with membrane filtration for very clean effluent; tends to have higher energy use.
Sequencing Batch Reactor (SBR): treats wastewater in timed cycles within a single tank, producing high-quality effluent.
Moving Bed Biofilm Reactor (MBBR): uses plastic carriers to maximize biological treatment in a compact footprint.
Disinfection step: many ATS include UV light or other disinfection to further reduce pathogens before release.

Where ATS fit best

Poorly draining soils or high groundwater where conventional systems struggle.
Lots with limited space that still require high-quality effluent.
Local or county codes that mandate enhanced treatment for sensitive areas (streams, wells, or residential neighborhoods).
Properties with high wastewater loads compared to typical homes (e.g., frequent guests, in-law units).

Pros and cons at a glance

Pros
- Cleaner effluent helps protect soil and groundwater.
- More forgiving on marginal soils and challenging sites.
- Can extend system life when correctly sized and installed.
Cons
- Higher upfront cost and ongoing energy use.
- More components mean more maintenance tasks.
- Electrical dependence and potential for more alarms to monitor.

Maintenance at a glance

Schedule professional inspections at least annually (often every 6–12 months for ATS).
Check alarms, floats, and power supply regularly; address issues promptly.
Keep the air intakes and vents clear of debris.
Follow the pumping interval recommended by the installer; ATS may require more frequent pumping.
Maintain any filters, screens, or membranes per manufacturer guidance.
Use only recommended products and avoid flushing prohibitive items.
Have a licensed technician verify system performance after major weather events or power outages.

Installation and service considerations

Proper design is key: ATS must be matched to your home's wastewater flow, soil conditions, and local code requirements.
Professional maintenance matters: regular service prevents downtime and preserves treatment performance.
Power reliability: expect a dependable electrical source and, if needed, backup options to keep the system functioning.

Questions to discuss with your contractor

Which ATS type is best for my site and code requirements?
What is the expected maintenance schedule and component life?
What are the costs for installation, routine service, and potential repairs?
How will we monitor system performance and what alarms should I expect?
What should I avoid flushing or pouring down the drain to protect the treatment process?

What Is a Advanced treatment septic systems?

How they differ from conventional systems

Advanced treatment septic systems add a higher level of treatment to the wastewater before it leaves the system.
They're designed for challenging sites: poor soils, shallow bedrock, high water tables, or higher wastewater flows.
They can reduce the size of the drain field or make alternative disposal possible when a conventional system won't work.

How an advanced treatment system works

Wastewater enters a septic tank first, where solids settle and scum rise to the top.
The clarified liquid then moves to an advanced treatment unit (ATU) or equivalent module.
The ATU uses aerobic processes, filtration, or other technologies to remove more pollutants than a standard septic tank.
Some designs include disinfection (UV light or chlorination) to further reduce pathogens.
Treated effluent is then distributed to the drain field, mound, or drip system, depending on soil and site conditions.
Most systems also include sensors, alarms, and a control panel to monitor performance and alert you to problems.

Common types of advanced treatment septic systems

Aerobic Treatment Units (ATUs): Use oxygen-loving bacteria to break down waste more aggressively than conventional tanks.
Membrane Bioreactor (MBR) systems: Combine a biological treatment process with a physical membrane to produce very clean effluent.
Sand/Media Filter systems: Pass effluent through specialized media to remove additional solids and nutrients.
Hybrid or mound configurations with AT components: Combine several technologies to fit difficult soils or sloping sites.
Drip or low-profile dispersal options: Use advanced treatment to allow efficient distribution in limited space or poor soils.

Pros and scenarios where they're especially helpful

Improve effluent quality in soils with limited natural filtration.
Allow systems to work on higher groundwater or shallower beds.
Enable smaller or alternative drain-field designs when space is limited.
Provide a reliable option for properties with seasonal water table fluctuations.
Can reduce odor and surface wetness concerns when properly maintained.

Maintenance at a glance

Schedule annual or semi-annual inspections by a licensed septic professional.
Regularly pump the septic tank as recommended (often every 1–3 years, depending on usage and tank size).
Ensure ATU/MBR components are serviced, with filters or screens cleaned as directed.
Check and test alarms, power supply, and control panels; replace batteries or parts as needed.
Use water wisely and avoid putting fats, oils, chemicals, solvents, or non-biodegradable items down the drain.
Protect the system: keep heavy equipment off the drain field, redirect downspouts, and manage surface runoff.

Costs and what to expect

Installation typically ranges from roughly $15,000 to $40,000 or more, depending on system type, site conditions, and permitting.
Ongoing maintenance can vary widely, often several hundred to a thousand dollars per year, depending on components and local service requirements.
Permitting, site work, and necessary upgrades to electrical or drainage can add to the total cost.

Quick steps for homeowners considering an upgrade

Have a soil and site evaluation done to confirm feasibility and required design.
Compare ATU, MBR, and other advanced options with a licensed septic professional.
Check local codes, permits, and expected maintenance obligations.
Plan for annual inspections and a pumping/maintenance schedule.
Budget for higher upfront costs and ongoing service needs.

Components of a Advanced treatment septic systems?

Primary treatment chamber (Septic tank or influent chamber)

The first stage where solids settle and fats rise to the top. In some advanced systems, a compact ATU may integrate this as a primary treatment chamber.
Key features: watertight tank, baffles to separate scum and sludge, and an effluent filter to reduce solids reaching downstream components.
Maintenance notes: schedule regular pumping (as recommended by your local health department) and inspect for cracks or excessive sludge buildup.

Aerobic treatment unit (ATU) or Aeration chamber

Uses air to boost beneficial bacteria that break down waste in an oxygen-rich environment.
What to expect: an air blower or energy-efficient diffuser system, a sealed treatment chamber, and careful dosing to keep aerobic conditions consistent.
Maintenance notes: keep the blower running reliably, check for leaks in tubing, and service per the manufacturer's intervals to prevent odor and performance loss.

Anoxic/denitrification stage (nitrogen removal)

Optional stage designed to reduce nitrogen before the effluent enters the soil treatment area.
How it works: creates pockets with limited oxygen to encourage denitrifying bacteria that convert nitrate to harmless nitrogen gas.
Maintenance notes: may require carbon sources or periodic testing; not all homes need this stage, but it's common in systems designed to meet stricter nutrient limits.

Secondary treatment media or clarifier (biofilter, sand/peat/media bed, or textile filter)

Polishes treated wastewater after the ATU, further reducing solids and organics before discharge.
Options include a media bed (sand, anthracite, or plastic media), a textile filter, or a small clarifier tank.
Maintenance notes: monitor media performance, remove accumulated solids when indicated, and keep flow paths clear to prevent clogging.

Disinfection stage (UV or chlorine)

Reduces remaining pathogens to protect public health and environmental quality.
How it works: a UV lamp or chlorine dosing unit treats the effluent just before it leaves the system.
Maintenance notes: replace UV bulbs on schedule, clean protective sleeves, and ensure there is no shading from sediment buildup; chlorine systems require careful handling and refilling.

Final disposal area (soil treatment area: drainfield, drip system, or mound)

The treated effluent is dispersed into the soil where it undergoes natural polishing and attenuation.
Options include a conventional drainfield, a drip irrigation network, spray irrigation, or a sand mound designed for advanced treatment effluent.
Maintenance notes: ensure proper loading rates for your soil type, flush drip lines periodically to prevent clogging, and confirm even distribution across the area.

Pumping and dosing system

Used when gravity alone won't move treated effluent to the disposal area or when controlled dosing improves soil absorption.
Components: dosing pump, dosing chamber or tank, distribution lines, and a timer or control to release small pulses.
Maintenance notes: verify pump operation, inspect check valves, and confirm timers are set according to your system design.

Controls, sensors, and alarms

The "brain" of the system, coordinating operation and safety.
Common features: high-water alarms, power loss alerts, airflow and pump status sensors, and a user-friendly control panel.
Maintenance notes: keep the control panel accessible, test alarms regularly, and consider remote monitoring if available.

Air supply system (blowers, piping, and diffusers)

Provides the required oxygen for the ATU to sustain aerobic bacteria.
Main parts: blower or compressor, air lines, and diffusers or airstones within the treatment chamber.
Maintenance notes: inspect for leaks, monitor noise levels, and service filters or mufflers as recommended.

Access, maintenance, and service components

Keeps the system serviceable and compliant with codes.
Includes: cleanouts, manholes, service ports, effluent filters, and secure, easy-to-remove lids.
Maintenance notes: keep access points clear for inspections, perform routine filter cleaning, and follow local guidelines for inspections and pumping.

How a Advanced treatment septic systems Works?

What makes an Advanced Treatment System different

Advanced treatment septic systems add a second treatment stage beyond the standard septic tank and drain field. They use aeration, filtration, membranes, or other polishing steps to reduce organics, solids, and nutrients before effluent reaches the soil. This makes them a good fit for marginal soils, tight lots, or places with stricter groundwater protections.

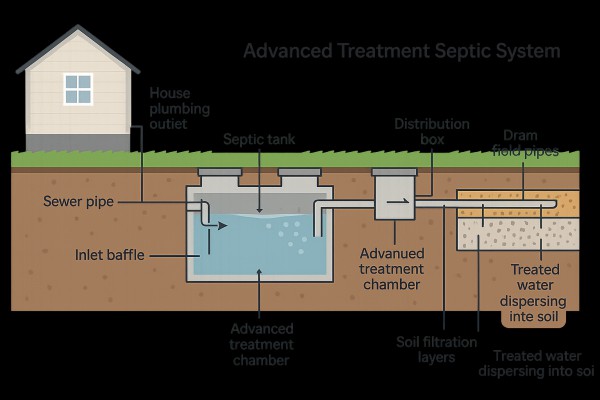

How the flow works: a simple step-by-step look

Waste enters the septic tank. Solids settle to the bottom, and fats and grease float to the top. The liquid in the middle moves on.
Clear effluent moves to the advanced treatment module. This is where the extra treatment happens, separate from the big tank.
The treatment chamber works with air and biology. Oxygen-using bacteria break down remaining organics more efficiently than a standard tank.
Polishing stage. Some systems pass effluent through a secondary clarifier or filtration stage to remove fine particles before discharge.
Disinfection step. A UV lamp or other disinfectant reduces lingering microbes in the treated water.
Dose and discharge. A pump or valve system releases the treated effluent in controlled doses to the drain field or mound.
Monitoring. The system's controls watch for pumps, air flow, and alarm signals so issues don't go unnoticed.
Into the soil. The final treated effluent enters the soil where the remaining contaminants get filtered out by soil and microbial activity.

Core components you'll find

Septic tank (primary treatment) to separate solids from liquids.
Advanced treatment chamber (aeration, biofilter, or membrane) for enhanced biological treatment.
Pumping or transfer chamber to move liquid between stages.
Disinfection unit (usually UV) to kill remaining microbes.
Dosing/distribution system to meter effluent to the drain field or mound.
Control panel and alarms that alert you to problems or maintenance needs.
Drain field or mound designed to receive treated effluent and finish the polishing in the soil.

How it's different from a standard system (in plain terms)

More treatment steps before water reaches the soil.
Often better performance on challenging soils or in areas with stricter discharge rules.
More moving parts and electrical components, so regular service matters.

Maintenance and care

Schedule regular professional service. Most homes with ATUs benefit from yearly checks and servicing, with more frequent attention if the system runs hard.
Keep alarms and indicators functional. Test them during every service visit and after heavy rainfall or power outages.
Protect the system from misuse. Use water-efficient fixtures, avoid flushing wipes, solvents, grease, paint, or chemicals that can disrupt bacteria.
Mind the landscape. Don't build heavy structures or plant deep-rooted trees over the treatment area; don't compact the area with heavy equipment.
Track records. Maintain a service log with dates, pump-outs, repairs, and parts replaced. This helps you plan maintenance and protects value.

Quick troubleshooting tips

Odors near the system or drain field? Call your pro—could indicate a pump, aerator, or distribution issue.
Slow drains or gurgling pipes? Might signal a clog or pump problem in the ATU circuit.
Standing water over the drain field after rainfall? Could be drainage balance or field loading; get a professional to inspect.

When to call a pro

Alarms or unexpected noises from the control panel.
Visible wet areas, foul smells, or standing effluent near the system.
Repairs beyond basic maintenance tasks or recent changes in usage.

When a Advanced treatment septic systems Is Used

When site soils and groundwater limit conventional systems

Shallow groundwater or a high water table makes it difficult for a standard drain field to safely absorb effluent without risking surface or groundwater contamination.
Soils with low permeability (heavy clay) or underlying bedrock can prevent proper infiltration and treatment, even on reasonably sized lots.
A small or oddly shaped lot can't accommodate a conventional leach field the way local codes intend, leaving limited space for safe effluent disposal.
Steep slopes, drainage patterns, or highly compacted soils increase erosion risk or clogging—conditions where enhanced treatment helps control output quality.
Local setbacks from wells, streams, or property lines may force a treatment system to rely on higher-efficiency discharge options than a conventional field can provide.

When you have higher wastewater strength or water use

Large families or multi‑unit homes generate higher daily flows, stressing a conventional system's capacity and longevity.
Frequent use of garbage disposals or high-volume laundry can raise organic load and nitrogen levels in the effluent, calling for more robust treatment.
Seasonal homes with peak occupancy create bursts of wastewater that a standard system may struggle to handle without backups or odors.
Homes with long-term high-water inputs, such as irrigation drains or irrigation wells, benefit from the steadier performance of advanced treatment.

When protecting sensitive water resources

Properties near wells, streams, lakes, or wetlands often face stricter water-quality goals; advanced treatment reduces nutrient and pathogen loads to protect drinking water and ecosystems.
Local or state rules may require lower nitrogen, phosphorus, or pathogen concentrations in effluent to prevent impacts on sensitive receiving waters.
If a nearby water body is subject to impairment designations or conservation programs, ATS can help meet those environmental expectations.

When space is limited or landscape constraints exist

Urban or tight lots may not have room for a traditional full-scale leach field; ATS can deliver higher treatment in a smaller footprint or with above-ground components.
Replacing a failing septic on a compact site often needs a different layout that maintains performance without expanding footprints.
Hardscaped yards, slopes, or ornamental landscaping can complicate trench-based designs; advanced treatment options provide flexibility while still protecting soil and water.

When local codes require or encourage advanced treatment

Some jurisdictions mandate enhanced treatment for new construction or for replacements in sensitive areas, regardless of apparent soil conditions.
Financing, insurance, or real estate transactions may require meeting higher effluent standards or documentation of proper maintenance plans.
Municipal programs sometimes offer incentives or guidance for systems that reduce nutrient loads and protect public water supplies.

How ATS are planned and installed (steps)

Schedule a site evaluation and soil test by a licensed professional to determine feasibility and targets.
Review local codes, setbacks, and permit requirements for an ATS—the design must comply with jurisdictional rules.
Select a suitable advanced treatment technology based on site data, performance goals, and maintenance considerations.
Have the system designed, approved, and installed by qualified contractors with experience in ATS installations.
Commission the system, adjust for optimal performance, and set up a formal maintenance and monitoring plan.

Pros of a Advanced treatment septic systems

Cleaner, higher-quality effluent

Advanced treatment units are designed to remove more contaminants than traditional septic systems, yielding cleaner effluent before it leaves the tank.
Many systems include disinfection and nutrient-removal components, which can reduce bacteria and nutrient loads entering soil and groundwater.
Cleaner effluent provides greater flexibility in how the drain field and any irrigation connections are designed and used.
This can mean a lower risk of odors, surface seepage, and premature drain-field distress in certain soils.

Cleaner effluent translates to better protection for nearby wells, creeks, and drainage paths, especially in areas with sensitive groundwater.

Greater reliability in challenging soils and high use

Higher treatment levels make the system less sensitive to marginal soils and seasonal moisture swings.
They tend to maintain performance under heavier daily use or uneven water consumption, reducing the chance of backup or slow drains.
The robust treatment process helps guard against short-term spikes in water use, such as hosting visitors or seasonal loads.

For households with limited soil permeability or variable water patterns, this reliability is a practical, real-world benefit.

Design flexibility and smaller footprint

A higher-quality effluent can support alternative distribution methods (like spray irrigation) or smaller drain-field footprints in some sites.
In many cases, advanced systems allow closer siting to structures, property lines, or wells when approved by local codes, giving you more placement options.
Modular components and streamlined layouts can fit tight lots or odd lot shapes more easily than conventional setups.

This flexibility is especially helpful on properties with strict setback rules or challenging topography.

Enhanced monitoring, maintenance, and peace of mind

Many advanced systems come with digital monitoring, remote alerts, and onboard diagnostics, making it easier to spot issues before they become problems.
Predictable service intervals and clearer maintenance guidance help homeowners plan and budget.
Clear maintenance logs and easy access to system data can simplify warranty claims and regulatory compliance.

With proactive alerts and transparent performance data, you'll spend less time worrying about what's happening underground.

Environmental protection and possible water reuse

Cleaner effluent reduces nutrient loads to groundwater and surface water, supporting local environmental goals.
In areas where local regulations permit, high-quality effluent may be eligible for irrigation reuse or other non-potable uses.
When designed and operated correctly, advanced treatment systems contribute to long-term watershed health.

This environmental upside often aligns with homeowner values around sustainability and water stewardship.

Home value and resale appeal

Modern, advanced systems are often attractive to buyers who want reliability and compliant performance.
Documentation of proper maintenance, inspections, and permit compliance can streamline the selling process and reduce contingencies.

Homeowners who invest in an advanced treatment system frequently report clearer long-term maintenance expectations and a stronger sense of security about their septic system's future.

How to maximize the benefits

Schedule regular professional inspections and maintenance according to manufacturer guidelines and local codes.
Use water-efficient fixtures and adopt mindful water use to keep loads within the system's design range.
Enable and monitor any remote alerts, and keep maintenance logs up to date for easy reference and warranty support.
Stay on top of permits, system upgrades, and recommended servicing to preserve performance and compliance.

Cons of a Advanced treatment septic systems

Higher upfront and ongoing costs

The unit itself and the installation tend to be pricier than conventional systems, often due to added treatment components, dosing equipment, and controls.
Installation can require more site work, potential drainfield modifications, and specialized labor, driving labor costs higher.
Ongoing expenses include electricity to run pumps and aerators, routine maintenance visits, and possible chemical dosing or media replacement over time.

More complex maintenance and monitoring

ATS systems usually demand maintenance from technicians trained specifically for advanced treatment units.
Regular servicing includes inspecting pumps, aerators, sensors, and control panels, plus testing performance metrics.
Some systems rely on remote monitoring or subscription-based monitoring services, which adds a recurring cost.
If a fault occurs, downtime can be longer while a qualified tech sources parts and confirms the fault.

Dependence on electricity and mechanical components

Pumps, blowers, and control panels require a steady power supply; outages can interrupt treatment and trigger alarms.
Mechanical parts wear out and may need timely replacements, which can be costlier and less readily available than parts for conventional systems.
Backup power options add to initial and ongoing costs and require space and planning.

Higher risk of component failure and repair costs

More moving parts mean more potential failure points (pumps, valves, sensors, dosing lines).
Failures often necessitate specialized service calls, which can be more expensive and involve longer wait times.
Parts for advanced treatment units may be back-ordered, causing longer downtime.

Site, space, and installation constraints

Additional pre-treatment or dosing components may require more space on the property.
Installation can be more invasive, especially if the existing drainfield needs modification or a larger absorption area is needed.
Access for service appointments and equipment delivery can be a factor, particularly on tight lots or sloped sites.

Regulatory and permit considerations

Many jurisdictions treat ATS units as higher-tier systems, with stricter permitting and more frequent inspections.
Annual or periodic performance checks, reporting, and compliance documentation can add administrative workload.
Permit renewals and potential code updates can influence long-term planning and costs.

Not always the better option for every site

If soil, groundwater, and drainage conditions are already favorable, the incremental benefit of an ATS may be small.
In some cases, the extra complexity offers little practical advantage, making the higher cost harder to justify.
For seasonal homes or small households, a conventional system or alternative options might be more economical.

Maintenance access and service availability

Trained technicians for ATS units aren't always nearby, especially in rural areas.
Travel time, scheduling, and parts availability can create delays and added costs.
If you're in a high-demand season, service windows may be tight, affecting response time.

Insurance, financing, and lender considerations

Some insurers may require additional endorsements or impose stricter terms for properties with ATS installations.
Financing options can be more limited or come with higher interest due to system complexity and perceived risk.

Steps to weigh the cons before deciding

List your site constraints and estimate long-term costs, including electricity, maintenance, and potential repairs.
Request detailed quotes that itemize equipment, labor, permits, and any ongoing service contracts.
Check local regulations, inspection frequency, and anticipated permit requirements.
Verify the availability of local service providers with ATS training and quick response times.
Compare the total cost of ownership with conventional septic options and a potential mound or drip irrigation alternative.

Typical costs of a Advanced treatment septic systems

What "advanced treatment" means for cost

Advanced treatment septic systems include enhanced treatment units, control panels, alarms, and often additional filtration or nutrient-removal stages. They're more complex than conventional septic beds, so expect higher upfront installation costs plus ongoing maintenance. The exact price depends on site conditions, system type, and local permitting.

Installed price ranges (ballpark)

Good soil, straightforward design: roughly $40,000 to $60,000 total installed.
Moderate site challenges (slopes, limited access, longer drainfield): about $60,000 to $80,000.
Difficult sites or high-performance requirements (nutrient removal, remote location, or added pumping): $80,000 to $120,000 or more.

Prices include design, permits, equipment, installation, and initial startup testing, but exclude yearly maintenance.

Cost breakdown by component

Treatment unit and controls: the core module (biofilters, MBBR media, or other advanced media) plus sensors and a control panel.
Tanks and piping: permeable and impermeable tanks, distribution lines, and drip or pressurized distribution if used.
Drainfield or soil treatment area: trenches, beds, gravel, perforated pipe, and surface restoration.
Electrical and pumping: power supply, pumps, alarms, and backup devices.
Permits, design, and inspection fees: plan review, soil testing, and final inspections.
Labor and sitework: grading, trenching, backfill, and traffic mitigation.

Factors that push costs up or down

System type and performance goals: higher nutrient-removal or disinfection features cost more.
Soil and site conditions: rocky soil, high groundwater, or limited access raise excavation and logistics costs.
Drainage area size: larger drainfields mean more materials and labor.
Local code and permitting: more stringent requirements add design and inspection costs.
Access and logistics: remote sites, difficult pathways, or weather windows can extend timelines and raise labor costs.
Replacement vs. new install: replacement projects may require additional work to connect to existing infrastructure.

Steps to plan and compare costs (3–4 practical steps)

Get a professional assessment: a site evaluation, soil tests, and a design proposal from a licensed septic designer.
Request multiple bids: ask for a line-item breakdown (equipment, tank, drainfield, permits, and labor) to compare apples-to-apples.
Confirm maintenance expectations: long-term viability includes annual service, parts replacement, and testing.
Check warranties and service plans: ensure parts are covered and know what maintenance is expected to keep the system compliant.

Typical components of the first-year outlay

System purchase and installation: covers the bulk of the price.
Permitting and design fees: varies by jurisdiction but is essential for compliance.
Startup, testing, and commissioning: ensures the system operates as designed.
Initial site restoration: grading, seed, and final surface repair after trenching.

Ongoing maintenance costs you should plan for

Routine service visit(s) per year: 200–500 per visit, depending on local rates.
Annual inspections and effluent testing: 150–350 for basic checks; more for advanced nutrient-focused testing.
Parts and replacements: pumps, valves, media, or alarms every 5–15 years, depending on usage and system type.
Monitoring contracts (optional): can provide peace of mind with included service calls and remote alerts.

Financing and potential incentives

Some regions offer low-interest financing, rebates, or incentives for nutrient-removal or advanced-treatment upgrades.
Check with your local health department, utility, or state environmental agency for current programs and eligibility.

Maintenance Requirements

Regular professional inspections

Schedule a licensed septic professional to inspect the advanced treatment unit at least once a year. The tech will test aeration, pumps, control panel, alarms, and electrical connections, and they'll check tank levels and overall system performance.
Expect the contractor to review effluent quality and any dosing or chemical components, then provide a written report with findings and recommended service intervals.
Keep a simple file of each visit: date, technician, readings, and any parts replaced. This helps track when you'll need pumping or component service.

Homeowner daily and weekly care

Flush only human waste and toilet paper. Avoid wipes (even "flushable" ones), paper towels, and feminine products, which can clog or damage the treatment unit.
Minimize chemical and solvent use. Do not pour fuels, paints, solvents, or cleaning products down drains or toilets.
Respect the system's loading. Use high-efficiency fixtures and spread water use during the day to avoid surges that can overwhelm the treatment unit.

System components to monitor

Listen for unusual noises or alarms in the control panel. Early alerts can signal a problem with the aerator, pump, or power supply.
Regularly inspect access lids and surface areas for pooling, damp spots, or strong odors near the tank and drainfield.
Watch plant growth and soil conditions over the drainfield. Extremely lush vegetation, wet spots, or persistent odors can indicate trouble with the system.

Maintenance tasks you can do at home

Check the alarm status and power with a quick glance at the control panel. If an alarm shows, note the code and power status, and contact your service provider.
Keep the aeration chamber clear of debris near the unit's inlet and outlet. Do not attempt to service inside the chamber yourself.
Inspect effluent filters (if your system has them). Clean or replace per the manufacturer's instructions and the technician's recommendation.
Record any observations after heavy rainfalls, droughts, or unusually high water use and share them with your next service visit.

Pumping and desludging

Pumping intervals for advanced treatment systems vary by tank size, household size, and usage. Most units require professional service every 1–3 years, with more frequent visits for higher loading or limited tank capacity.
A licensed contractor will remove settled solids, inspect baffles, and verify the pump chamber is functioning properly. After pumping, they'll reassemble and test the system to ensure proper operation.
Do not rely on odor or appearance alone to judge when it's time to pump; follow the schedule recommended by your installer and annual inspection reports.

Protecting the drainfield

Do not drive or park on the drainfield or nearby slopes. Heavy loads can compact soil and damage the system.
Avoid planting trees or deep-rooted shrubs over or near the drainfield. Roots can infiltrate pipes and chambers.
Redirect surface water and roof runoff away from the drainfield. Excess water can overwhelm treatment components and lead to failure.
Limit irrigation over the drainfield. Excess watering reduces soil treatment capacity and can compromise effluent dispersal.

Alarms and emergencies

If an alarm activates, first check power and reset if instructed by the manual. If the alarm persists or you notice pooling, odors, or wet spots, contact your septic professional immediately.
Do not attempt DIY repairs on pumps, aerators, or control circuitry. Advanced treatment units rely on specialized components and calibration.

Records and documentation

Maintain a file of all service visits, pumping dates, and parts replaced.
Keep the system design printout, manufacturer maintenance guide, and warranty information readily accessible.
Share inspection findings with your health department as required by local codes and keep copies for your records.

Common Problems With a Advanced treatment septic systems

Alarm and electrical issues

Advanced treatment systems rely on electricity and sensors. Common problems include a failed control board, tripped breakers, dead backup battery, or a malfunctioning alarm. Symptoms: the alarm sounds, the display is blank or shows an error code, or the system won't start a treatment cycle.

What to check safely:

Ensure the main breaker and any local disconnect are on.
Note any blinking lights or error codes in the manual.
If power is present but the unit is unresponsive, avoid repeated resets and contact a licensed ATTS technician.

Mechanical failures

Key components such as pumps, aerators or blowers, dosing valves, and agitators can wear out or seize. Symptoms: irregular cycling, noises (hums, rattles), or no dosing/air delivery at all.

What to do:

Visually inspect accessible fittings for leaks or loose connections.
Listen for unusual sounds during operation and verify impellers rotate freely.
If you suspect a failed motor or clogged line, schedule professional service rather than attempting repairs yourself.

Solids buildup and clogging

Even with pretreatment, solids can accumulate in the tank or in the effluent screen, pump chamber, or dosing lines. Symptoms: slower drainage, frequent cycling, or pump clogs.

What to do:

Have the accessible effluent screen and pump chamber inspected during routine service.
Avoid flushing wipes, grease, or excessive solids that can clog the system.

Filtration and media issues

Some advanced systems use filtration media or specialized media beds. Over time media can become fouled, reducing contact and treatment efficiency.

Symptoms: cloudy or odorous effluent, reduced performance, alarms related to pressure or flow.

What to do:

Follow manufacturer guidance for scheduled media replacement or cleaning.
Do not improvise or use aggressive cleaners that can degrade media.

Odor and gas issues

Gas buildup or venting problems can create odors near the unit or around the drainfield.

Causes: blocked or undersized venting, anaerobic pockets, overloading the system.

What to do:

Check that vent stacks are unobstructed and not crushed.
Ensure traps in the building remain primed; avoid sealing vents or piping improperly.
If odors persist, call a pro to inspect venting and system balance.

Performance and drainage symptoms

Toilet or sink gurgling, slow drains, or sudden surges indicate performance problems.

Causes: hydraulic overloading, blocked lines, failing pump, or poor distribution.

What to do:

Limit indoor water use when you notice signs.
Check interior piping for leaks or blockages, and have the ATTS evaluated if symptoms continue.

Drainfield and soil problems

Even with advanced treatment, the drainfield must absorb treated effluent. Root intrusion, soil compaction, or wet soils reduce absorption.

Symptoms: consistently damp surface with odor, lush vegetation, or standing water near the drainfield.

What to do:

Have the drainfield evaluated for compaction, roots, or saturation.
Address issues promptly; improper load can shorten system life.

Groundwater interactions

High groundwater or surface runoff can interfere with treatment and cause effluent surfaceing.

Symptoms: noticeable wet areas or effluent near the system after rain.

What to do:

Manage surface water around the system and ensure proper grading.
A professional assessment can determine if adjustments or additional containment are needed.

Maintenance pitfalls

Misuse of cleaners, antibiotics, or solvents can disrupt beneficial bacteria. Excessive water use, garbage disposals, or flushable wipes increase solids.

What to do:

Use water-conscious habits and follow the manufacturer's product guidance.
Keep disposals to a minimum and avoid flushing non-biodegradable items.

Freezing, thaw cycles, or heavy rainfall can affect components and balance.

Symptoms: intermittent operation or delayed response after weather events.

What to do:

Ensure proper insulation and clearance around the unit.
Schedule seasonal maintenance to adjust for weather-related stresses.

Quick steps if you notice a problem

Note any alarm codes and the exact time of occurrence.
Reduce indoor water use to ease the system load.
Check accessible components visually and verify power is steady.
Call a licensed ATTS technician for a diagnostic visit and any necessary maintenance.
