Ultimate Guide to Septic float switch replacement

Last updated: Mar 21, 2026

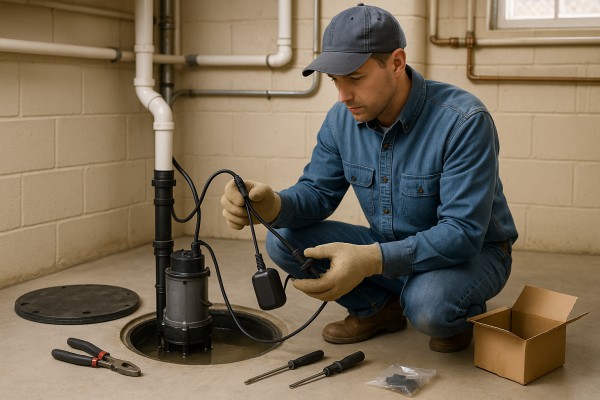

Septic float switch replacement

Septic float switch replacement

Your septic system uses a float switch to tell the pump when to move wastewater from the tank to the leach field. When this little device falters, you can see overflows, a pump that won't turn on, or alarms that won't quit. Replacing a faulty float switch is a common homeowner job—provided you respect safety, use the right part, and follow the wiring and mounting details carefully.

What a float switch does

  • Senses the liquid level in the septic tank or pump chamber.
  • Sends a signal to start or stop the pump or to open/close a valve.
  • Helps prevent tank overflows and keeps the system from running dry.
  • Is typically mounted on the pump, float rod, or inside a control assembly accessible through a riser.

Signs of trouble

  • The pump runs continuously or won't run at all.
  • The system alarm sounds without a clear trigger.
  • Water level appears abnormal (too high or too low) after a rainfall or heavy flushing.
  • The float feels stuck, wires are corroded, or you hear unusual clicking or buzzing from the control panel.

Replacement options and planning

  • Match electrical characteristics: voltage (usually 120V or 240V in residential setups) and current rating to your pump/controller.
  • Choose the right type for your setup: standard float switch, submersible float, or a vertical/tethered design depending on where the switch sits.
  • Verify compatibility with your pump and control panel; some systems use integrated assemblies where the float switch is part of a larger module.
  • Inspect related components: wiring, connectors, and the mounting bracket. If there's corrosion or damaged wiring, you may want to replace more than just the switch.
  • OEM parts are usually the safest bet for fit and warranty; aftermarket options can work if they meet spec.

Step-by-step replacement (homeowner-friendly)

  1. Safety first: Turn off power at the main breaker, and tag the circuit to prevent accidental re-energizing. If you're unsure, contact a professional.
  2. Locate the float switch: Find the assembly inside the pump chamber or on the float rod within the control box. Note its position to restore the same geometry.
  3. Document the wiring: Take a clear photo or draw a simple diagram of how wires are connected.
  4. Disconnect power and wires: Use insulated tools; avoid pulling wires by the insulation. Label each lead if needed.
  5. Remove the old switch: Loosen mounting hardware and carefully detach the float linkage and electrical connections.
  6. Prepare the new switch: Check that the new part matches the voltage, current rating, and mounting footprint. If the switch is submersible, ensure the seal and grommets are intact.
  7. Install the new switch: Mount in the same orientation as the old one and secure it firmly. Reconnect the wiring according to your notes or the manufacturer's diagram.
  8. Test the mechanism: Before sealing the chamber, apply a controlled level change to verify the float moves freely and the control panel responds correctly.
  9. Restore power and verify operation: Turn the breaker back on, run a test cycle, and watch for proper on/off behavior as the fluid level rises and falls.
  10. Final checks: Confirm there are no leaks around the switch, and ensure the area around the pump and control box is dry and accessible for future maintenance.

When to call a pro

  • You're unsure about the correct voltage, wiring diagrams, or how to safely shut off power.
  • The system uses a complex control module or integrated alarm that you don't want to disturb.
  • There's suspicion of damaged wiring, corrosion, or a pump issue beyond the float switch.
  • The tank has a history of backups or the control panel shows fault codes you can't interpret.

Maintenance tips

  • Test the float switch regularly (at least quarterly) by simulating rising water to ensure timely pump activation.
  • Keep the area around the tank and control box clean and dry; remove debris that can obstruct float movement.
  • Inspect wiring connections for signs of wear, moisture, or corrosion and address promptly.
  • Use the correct replacement parts specified for your system to maintain warranty and performance.

Signs You Need Septic float switch replacement

Common signs a float switch needs replacement

  • The pump won't start when the tank reaches its high-water point.
  • The pump runs constantly or cycles on/off rapidly without stabilizing.
  • The float seems stuck in one position, and the pump does not respond as water levels change.
  • Alarm indicators (high-water alarm or pump failure alarm) are sounding or flashing.
  • The float, switch, or wiring shows visible damage (cracked or cracked-open plastic, rust, frayed wires, melted connectors).
  • You hear unusual noises from the pump or control box (humming, buzzing, grinding) that aren't part of normal operation.
  • Water in the tank remains high or doesn't drop after the pump should have pumped out effluent.
  • Household backups or slow drainage persist even when other system components appear to be functioning.
  • The control panel or switch housing feels hot to the touch or emits a burnt odor.

What to check at home

  • Power and safety: confirm the breaker feeding the pump is ON and any GFCI outlets are reset.
  • Debris and sticking: look for sludge, roots, or debris around the float that could prevent full range of motion.
  • Visual damage: inspect the float, switch stem, terminals, and wires for cracks, corrosion, or exposed conductors.
  • Moisture and corrosion: check the control box and wiring for moisture intrusion or corrosion.
  • Level responsiveness: observe whether raising and lowering the float causes the pump to engage and then shut off cleanly.

Quick tests you can do (if safe and comfortable)

  1. Power down at the breaker before touching any components.
  2. Remove the access cover from the pump basin if your system has one.
  3. Gently move the float up and down by hand to see if the pump activates when raised and stops when lowered.
  4. If the pump runs but the water level does not change, or if the switch does not respond to float movement, the switch or the connection to the pump may be failing and replacement is likely warranted.
  5. Re-cover the basin and restore power to observe normal operation after any inspection.

When replacement is more likely than repair

  • Visible damage to the float, switch, or wiring that affects electrical integrity.
  • Recurrent failures where cleaning or adjusting the float does not restore reliable operation.
  • The system is older and exhibits multiple symptoms over time (persistent alarms, intermittent pumping, frequent clogs in the float line).
  • The float switch exhibits erratic behavior or remains stuck despite debris removal and basic fixes.

Quick prevention tips after replacement

  • Schedule a routine inspection every 1–2 years to catch wear before it fails.
  • Keep the basin area clear of heavy debris and roots; avoid flushing items that can clog the pump and float.
  • Consider upgrading to a more robust float switch with a sealed housing if your environment is prone to moisture or corrosion.
  • Label the circuit and keep spare parts on hand so a future check can be quick and safe.

How Septic float switch replacement Works

What a float switch does

A float switch is a simple on/off device that signals the pump to start when the wastewater level rises enough and stops the pump when the level falls. It uses a buoyant float attached to a switch mechanism. When water lifts the float, the switch closes and power flows to the pump; when water recedes, the switch opens and the pump stops.

When replacement is needed

  • The pump runs constantly or short-cycles without a high-water event
  • The switch sticks, binds, or won't move freely
  • You see corrosion, cracks, or moisture inside the housing
  • The control panel or alarm reports a float switch fault
  • The system has been in service for many years and shows inconsistent behavior

What you'll need

  • A compatible replacement float switch for your pump model
  • Basic tools: screwdriver (flat and Philips), pliers
  • Wire nuts, electrical tape or heat-shrink tubing
  • Voltage tester or non-contact tester
  • A bucket, towels, and a flashlight
  • Optional: new mounting screws or clamps if needed
  • Safety gloves if handling dirty water

Safety first

  • Cut power at the main breaker before touching any wiring
  • Verify power is off with a tester
  • Work with dry hands and a dry work area; avoid standing in water
  • Use eye protection and read the manufacturer's installation instructions for your model

Step-by-step replacement (how it works)

  1. Locate the float switch and identify how it's mounted and wired. Some systems have the switch on the pump lid; others have a separate float arm inside the chamber.
  2. Take a quick photo or label wires so you can reconnect correctly.
  3. Disconnect the power, then loosen and remove the old switch from its mounting.
  4. Remove the old wiring from the switch terminals and set the wires aside.
  5. Mount the new float switch in the same position, making sure the float can move freely without hitting sides or the pump.
  6. Reconnect the wires to the new switch according to color or terminal labels. Secure with wire nuts and seal where needed.
  7. Adjust the float arm height if the new switch requires a different position. Match the previous setting or follow the manufacturer's spec for your tank size.
  8. Reassemble the lid or access panel and restore power at the breaker.
  9. Test the unit by triggering the float (pour a small amount of water or slowly raise the level). Confirm the pump starts and stops as the water level moves.

Aftercare and verification

  • Observe a complete cycle: level rises, pump starts, level falls, pump stops
  • Check for leaks around fittings and the switch housing
  • Recheck wiring after a few minutes of operation to ensure nothing has shifted

Typical Septic float switch replacement Costs

What gets replaced

  • Float switch assembly (the sensing device)
  • Mounting hardware and arm
  • Optional: secondary/backup float, alarm module, relay, and wiring harness
  • In some setups, a new control panel or alert buzzer if the old one is outdated

Typical cost ranges

  • Parts: typically $15–$180 depending on model (basic single float vs. dual float with robust housing)
  • Labor: usually $90–$180 per hour, with most jobs taking 1–3 hours; most technicians bill for time plus any small parts
  • Typical total: about $180–$700
  • Higher end: if you need additional components (new alarm, control box, or backup float) or if accessibility is difficult, costs can push toward $800–$1,000+

Why prices vary

  • System type: gravity-fed vs. pumped systems, or tanks in hard-to-reach locations
  • Accessibility: buried tanks, concrete pits, or tight crawlspaces add labor time
  • Additional components: replacement alarms, control panels, or backup floats add to the bill
  • Region and contractor rates: labor rates differ by market and company

What's included with a pro replacement

  • On-site assessment of the current setup and function
  • Removal of the failed float and inspection of related wiring
  • Installation of a new float switch, mounting hardware, and connection to the control system
  • Basic calibration of float depth and pump cycle
  • Testing to ensure proper cycling, alarm function, and overall reliability
  • Short post-installation guidance on maintenance and testing

DIY vs. professional replacement

  • DIY advantages: lower upfront cost, hands-on learning opportunity
  • DIY drawbacks: higher risk of improper wiring or calibration, potential voided warranties, safety concerns with electrical components near wastewater
  • Professional recommendation: for most homeowners, especially when wiring, electrical codes, or warranty protection are factors, hiring a licensed septic technician is the safer path

Step-by-step: what to expect during a typical replacement (overview)

  1. Quote and scheduling: confirm scope and any required access work
  2. Safety prep: shut off power to the pump/control panel and prepare the work area
  3. Remove old parts: disconnect and remove the failed float and any damaged wiring
  4. Install new parts: mount the new float, reconnect wiring, and secure harnesses
  5. System test: simulate water level changes, verify alarm, and confirm correct pump cycling
  6. Documentation and tips: note the new settings, offer upkeep reminders, and provide warranty details

Hidden costs to watch for

  • Emergency or after-hours service fees
  • Tank access fees if the lid or access point requires opening
  • Special-order parts or expedited shipping
  • Additional repairs discovered during replacement (e.g., degraded wiring or switch control module)

Maintenance tips to help avoid frequent surprises

  • Regularly test the float manually to ensure it triggers the pump
  • Keep access lids secure and free of debris
  • Schedule periodic inspections to catch wiring or mounting wear early
  • Avoid chemical or grease buildup near the float area that could affect sensing or wiring

How Often Do You Need Septic float switch replacement

Typical lifespan

  • In a residential septic lift station or pump basin, a float switch generally lasts about 5–7 years. With high-quality components and good maintenance, some units can reach 10–15 years, but that longer life is not guaranteed.
  • Cheaper or harsh-industrial environments tend to shorten life. If you're seeing frequent alarms or inconsistent pump operation, expect a sooner replacement window, often within 2–5 years for lower-end components.

What affects replacement timing

  • Sediment and sludge buildup around the float can impede movement and wear the switch contacts faster.
  • Water quality and chemical exposure: aggressive or caustic wastewater accelerates corrosion and deterioration.
  • Frequency of pumping cycles: rapid cycling (pump turning on and off often) puts more stress on the switch.
  • Electrical issues: moisture intrusion, loose connections, or damaged wiring lead to early failure.
  • Environmental factors: excessive humidity, dirty sump air, or poor enclosure sealing can shorten switch life.
  • System design: a poorly matched pump or overly large pump basins cause abnormal loading on the float, shortening its lifespan.

Signs you may need replacement

  • The alarm sounds when it shouldn't or fails to alarm at proper levels.
  • The pump runs continuously or won't shut off after reaching the float's intended level.
  • The float sticks, sits at an odd angle, or can't move freely.
  • Visible damage: corrosion, cracks in the housing, melted parts, or frayed wiring.
  • Inaccurate level readings or intermittent signals to the control panel.
  • After inspection or service, the switch or associated wiring still shows faults.

Replacement timing: repair vs. replacement

  • If the switch is part of a modular pump assembly and the unit is aging, replacing the whole pump with a new float mechanism can be more reliable than swapping just a switch.
  • For older systems with multiple failing components, plan a package replacement (pump assembly, float, and seals) rather than chasing single-switch fixes.
  • If the system is under warranty, verify coverage for float switch replacement and associated labor.

How to check your float switch (self-check steps)

  1. Power down the pump and control panel to ensure safe inspection.
  2. Access the float within the pump basin or lift station.
  3. Manually move the float up and down to confirm it travels freely without sticking.
  4. Listen and observe: ensure the control panel responds when the float passes its setpoints.
  5. Inspect the wiring and seals for moisture, corrosion, or wear.

Replacement steps (typical process)

  • Use a compatible, manufacturer-approved float switch or full pump assembly for a guaranteed fit.
  • If your setup uses a submersible pump with an integrated float, you may replace the whole pump assembly rather than swapping the switch alone.
  • General steps:
    1. Power down and lock out electrical sources as needed.
    2. Isolate and drain the basin if required to access components.
    3. Remove the old float switch, freeing the wiring and mounting hardware.
    4. Install the new float switch, ensuring proper orientation, secure mounting, and correct level alignment.
    5. Reconnect wiring, restore power, and test the system from low level to full range before returning to service.

Maintenance to extend float switch life

  • Keep the access cover clean and free of debris that could jam the float.
  • Inspect seals, grommets, and wiring annually for moisture intrusion or wear.
  • Schedule professional checks every 1–2 years to verify proper function of the float, control panel, and pump.
  • Consider upgrading to higher-quality switches or a sealed, corrosion-resistant design if your wastewater quality is harsh.

When to Call a Professional

Red flags that mean you should call a pro

  • The float switch or control panel isn't responding as the water level rises or falls.
  • The alarm sounds or the display shows a fault code, especially if it warns of high liquid level or pump failure.
  • The pump runs constantly or cycles on and off abnormally, which can indicate a stuck switch or wiring issue.
  • You notice repeated breaker trips, flickering lights, or exposed wiring near the septic area.
  • There are strong odors, wet spots, or puddles around the access lid, tank, or drain field, suggesting a possible leak or wiring problem.
  • Your DIY attempts haven't fixed the issue and the system still misbehaves after you've re-seated connections or replaced the switch once.
  • The system is old or you're not comfortable with electrical components, especially if the switch has been underwater or exposed to sewage.

When DIY might be risky or inappropriate

  • Electrical knowledge is limited, and you're uncomfortable shutting off power safely, testing continuity, or handling wiring near sewage.
  • The float switch is embedded in a hard-to-reach area or requires special mounting, calibration, or a nonstandard part.
  • Your septic system is under warranty or a service agreement that requires approved professionals for replacements.
  • There's any sign of sewage backup, backflow, or contamination—these conditions require professional containment and handling.

What a professional will do

  • Inspect the current float switch, the float arm, wiring, and the control panel for corrosion, loose connections, or damaged components.
  • Verify compatibility: confirm the right switch type (reed, mechanical, or submersible) and the correct voltage, float travel, and IP rating for your system.
  • Diagnose the root cause: determine if the problem is the switch itself, a failed pump, wiring fault, or control-board issue.
  • Replace with a certified part: install a compatible replacement float switch, secure the mounting, and ensure proper alignment and travel range.
  • Test thoroughly: restore power, run multiple test cycles, check alarm behavior, and confirm that the pump cycling is correct under different water levels.
  • Inspect safety and seals: reseal access points as needed, check for leaks, and confirm that the lid and access are secure to prevent debris intrusion.

Steps a professional typically follows (overview)

  1. Safety first: shut off power at the main breaker and lockout/tagout if required.
  2. Access and inspect: remove the lid, inspect the tank, and evaluate the existing switch and wiring.
  3. Replace and re-wire: install the new float switch, connect wires properly, and mount the sensor securely.
  4. Test with the system: power up, run a full cycle test, simulate high and low water levels, and verify alarms.
  5. Final checks: confirm there are no leaks, verify pump operation, and provide a brief maintenance plan.

What to have ready for the visit

  • Your system's make and model, if known, and the current switch type.
  • Any recent service notes or fault codes you've observed.
  • Access details, gate codes, and a clear path to the tank and control panel.

After the replacement

  • Monitor the system for a day or two to ensure stable operation.
  • Note any unusual noises, smells, or damp spots and report them promptly.
  • Consider scheduling regular inspections to catch wear or wiring issues before they cause failures.
