Ultimate Guide to Mound system installation

Last updated: Mar 21, 2026

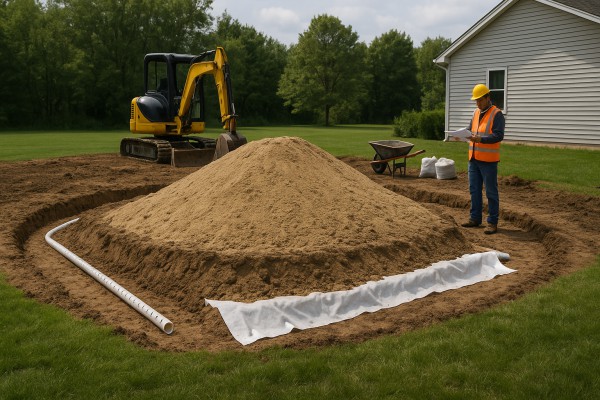

Mound system installation

Mound system installation

What is a mound system?

A mound system is an elevated wastewater treatment method used where the native soil can't absorb effluent or where groundwater or bedrock sits too close to the surface. It typically includes a septic tank, a dosing or pump chamber, and a raised bed of sand and fill material—the "mound"—above the natural ground. Wastewater is treated as it travels through the mound and into the surrounding soil.

When is a mound system used?

Mound systems are a practical solution when standard septic systems can't perform due to site limitations. Consider a mound if:

  • The soil is shallow or mostly clay, with poor infiltration.
  • The water table or bedrock is near the surface for much of the year.
  • Slope, drainage, or lot constraints prevent a conventional drainfield.
  • Local codes or health departments require an elevated treatment area for environmental protection.

Site evaluation and design

A successful mound starts with a thorough evaluation. Here's what that typically involves:

  • Soil and site testing: percolation tests, soil borings, and evaluation of groundwater conditions.
  • Design assumptions: daily wastewater flow, future needs, and lot layout.
  • Professional design: a licensed septic designer or engineer creates the mound layout, dimensions, and material specifications. Plans are reviewed and approved by the local health department or regulatory authority.
  • Accessibility and landscape: considerations for access for maintenance and the impact on irrigation, plantings, and hardscape.

Permitting and approvals

Before construction begins, you'll navigate permit steps:

  • Submit project plans and soil data to the local health department or regulatory agency.
  • Obtain a construction permit and, if required, an engineered design approval.
  • Schedule inspections at key milestones (installation, backfill, and final start-up).

Installation steps

The process is performed by trained professionals with careful oversight. A typical sequence looks like:

  1. Pre-construction setup: mark setbacks, protect utilities, and prepare the site per the plan.
  2. Tank and piping installation: place the septic tank, pump or dosing chamber, and the connecting lines to the mound.
  3. Mound construction: build the elevated bed using clean sand and select fill material; lay down drainage fabric and geotextile liner as specified.
  4. Distribution network: install the perforated distribution pipes or tiles within the mound and connect to the dosing system.
  5. Backfill and finish grading: restore surrounding soil, finalize surface grading, and plantings if appropriate.
  6. Commissioning: fill and test the system, verify dosing, and complete required inspections and approvals.

Post-installation care and maintenance

Proper care keeps the mound performing over the long term:

  • Routine maintenance: schedule regular septic pumping according to your local code and system usage.
  • Inspections: periodic checks of the tank, pump chamber, and mound surface for signs of uneven wetness, drainage issues, or odors.
  • Landscape management: keep heavy equipment and deep-rooted plants away from the mound; avoid compacting the soil above it.
  • Runoff and usage: manage irrigation and rainfall around the site to prevent pooling near the mound.

Common questions

  • How long does a mound last? With proper design, installation, and maintenance, a mound system can provide reliable service for decades.
  • What affects performance? Soil conditions, proper sizing, correct installation, and adherence to maintenance intervals are the main factors.
  • Do I need special inspections? Yes—initial commissioning and periodic inspections by licensed professionals or local authorities help verify that the system operates correctly.

Signs You Need Mound system installation

When traditional trenches won't work

  • The natural soil near the surface drains poorly or sits wet after rain, making it hard for a conventional drain field to absorb effluent.
  • There is a shallow depth to bedrock, a hardpan, or other restrictive layers within reach of standard trenching.
  • Soil is heavy clay or compacted, with little to no vertical drainage capacity.
  • The building site is sloped, uneven, or has limited level area, complicating the layout of conventional trenches.
  • Groundwater is close to the surface for much of the year, raising the risk of effluent surfacing or field saturation.

Evidence your drain field is stressed or failing

  • You notice soggy or swampy patches over the drain field, even long after rainfall.
  • A persistent septic odor near the lawn, drain field, or septic tank area.
  • Gurgling sounds in plumbing, slow drainage, or frequent backups inside the home.
  • Unusually lush, green, or mossy growth directly above the drain field, signaling excess moisture and nutrients.
  • Plume or staining on the landscape, piping or pipes showing effluent leakage.

Site and soil conditions that point to mound suitability

  • Soil tests or percolation results indicate the native soil won't absorb and treat wastewater effectively in a conventional trench.
  • There is a restrictive layer (clay pan, hard layer, or bedrock) within the typical depth of a standard drain field.
  • The lot has limited usable area for a conventional absorption area, or the topography makes trench installation impractical.
  • Local rules or health department guidance anticipate or require an elevated absorption area due to site constraints.
  • Seasonal or recurrent wetness, flooding risk, or high water table make surface-level drainage unreliable.

How a septic professional confirms mound suitability (quick steps)

  1. Schedule an on-site evaluation to assess soil, water table, and land features.
  2. Conduct soil testing and a formal percolation test to measure absorption capacity and hydraulics.
  3. Review the home's wastewater load, future expansion needs, and setback requirements.
  4. Design the mound system with an elevated absorption bed, proper grading, clean fill, and ventilation considerations.
  5. Discuss maintenance, monitoring, and expected life span of the mound, including access for pumping and inspection.

How Mound system installation Works

Planning and design

  • The installer or engineer confirms a mound is the right solution based on soil tests, groundwater level, and site constraints.
  • The local health department reviews the plan, issues permits, and may require inspections during construction.
  • A layout plan is drawn to show the septic tank, dosing chamber, mound footprint, distribution lines, and access risers.

Site preparation and permitting

  • Clear and mark the work area, protecting it from foot and vehicle traffic during construction.
  • Identify and relocate utilities if needed, and set up erosion controls to keep runoff in check.
  • Install any required access paths and temporary facilities for the installation crew.

Mound construction basics

  • A mound has three parts: the foundation/subgrade, a clean sand fill layer, and the topsoil cover.
  • A base trench is excavated, and a layer of clean sand (commonly 2–4 feet thick) is spread and graded to promote proper drainage.
  • Geotextile fabric is placed to separate the sand from native soil and to keep soils from mixing with the sand fill.
  • A drainage/distribution system with perforated pipes is laid on the sand layer and connected to the dosing chamber.

Dosing and distribution system

  • The septic tank feeds effluent to a dosing chamber, which periodically releases small, measured doses to the mound.
  • Perforated distribution lines run in a grid pattern within the sand layer to achieve even wetting and treatment of the effluent.
  • A pump or siphon-based dosing method ensures the mound receives controlled, regular doses.

Tank installation and connections

  • The septic tank is positioned and connected to the house waste line and to the dosing chamber.
  • Access risers and lids are installed so the tank and dosing chamber can be pumped and inspected later.
  • All joints use proper seals and fittings, with careful slopes to prevent backups and standing water.

Backfill, grading, and site restoration

  • The mound is covered with a topsoil layer and vegetation to promote stability and prevent erosion.
  • The surrounding area is graded to direct surface water away from the mound and structures.
  • Disturbed areas are restored with turf or approved landscaping, keeping the mound accessible for maintenance.

Start-up, testing, and inspection

  • The system is pumped and tested for correct dosing cycles, flow paths, and absence of leaks.
  • Local inspectors verify that the installation matches the design and code requirements.
  • The initial weeks may involve monitoring water usage and dosing performance to confirm proper operation.

Maintenance reminders

  • Schedule pump-outs every 3–5 years, or per local requirements, based on household wastewater volume.
  • Do not drive or park on the mound; restrict heavy loads that could compact the sand layer.
  • Plant only shallow-rooted vegetation on or near the mound to avoid root intrusion.
  • Keep access paths, dosing chamber lids, and the septic tank area clear for easy service and inspections.

Typical Mound system installation Costs

Typical total installed cost range

  • Low end: $15,000–$25,000
  • Typical: $25,000–$45,000
  • High end: $50,000–$70,000+ (or more in very challenging sites)

Most projects fall in the $25,000–$45,000 band, but expect costs to rise with difficult soils, high groundwater, or tight site access. These numbers reflect complete installation, including design, permits, mound materials, trenching, and restoration of the yard.

What goes into the price

  • Design and engineering: $1,000–$3,000
  • Soil testing and percolation tests: $500–$2,000
  • Permits and inspections: $500–$2,000
  • Mound materials (sand fill, fabric, gravel, topsoil): $8,000–$25,000
  • Drainfield components (pipes, distribution, pump chamber, dosing system): $2,000–$8,000
  • Excavation, site prep, and installation labor: $5,000–$15,000
  • Electrical/controls for pump and alarm: $1,000–$3,500
  • Lawn/grading and restoration: $1,000–$3,000

Major cost components (by category)

  • Site assessment and design: pays for a professional evaluation of soil, slope, and setbacks; often included in the permit package.
  • Soil tests and percolation: determines feasibility and mound sizing; essential for an approved design.
  • Mound construction materials: sand fill, geotextile fabric, gravel, topsoil, and protective cap material.
  • Drainage and distribution system: pipes, chambers, drip lines (if used), and the dosing/pump equipment.
  • Excavation and civil work: digging the mound, trenches, and any required shoring or grading.
  • Electrical and controls: submersible pump, control panel, alarms, and wiring to the house or a buried junction box.
  • Restoration: reseeding or sod, mulching, and any needed grading or landscaping.

Permits, design, and inspections

  • Permitting: varies by jurisdiction; some areas require a full design package, others a simple plan.
  • Final inspections: typically required before use; failures or rework can add weeks to the timeline and cost.
  • Engineering fees: may apply for complex sites or when subsurface conditions demand specialized design.

Site factors that raise costs

  • Soil and groundwater: high water tables, poor percolation, or variable soils can require larger or more complex mound designs.
  • Slopes and terrain: steep or uneven terrain increases excavation and staging needs.
  • Limited access: narrow driveways or urban lots mean more manual labor and equipment coordination.
  • Local regulations: stricter setback rules, higher permit fees, or mandatory additional testing add to costs.
  • System capacity: larger homes or higher wastewater flow require bigger mounds and more materials.
  • Environmental conditions: need for erosion control, seasonal work windows, or additional stormwater management.

Step-by-step cost planning (estimate to finish)

  1. Get on-site evaluations from 2–3 licensed contractors to compare designs and prices.
  2. Request itemized, written proposals that list design, materials, labor, permits, and contingencies.
  3. Include a contingency (10–20%) for unforeseen site conditions or plan changes.
  4. Understand ongoing costs: pumping frequency, replacement of media or filters, and annual system checks.

How Often Do You Need Mound system installation

Typical lifespan of a mound system

  • Most mound systems last about 20–30 years with regular maintenance and proper use. In favorable soils and with careful care, some systems can push past 30–40 years.
  • Longevity is shaped by site conditions, groundwater, system design, and how well you protect the mound.
  • With good planning, a replacement mound isn't something you should have to redo every few years. It's more of a long-term upgrade when your current system can't meet demand or has failed.
  • Factors that influence lifespan:
    • Soil quality and drainage: well-drained soils support longer life; poor drainage or high perched water tables shorten it.
    • System sizing and load: a home that uses more water or has a garbage disposal may wear out a mound faster.
    • Protection and maintenance: avoiding heavy loads on the mound, keeping roots away, and timely pumping extend life.

When is a new mound installation needed?

  • When the drain field part of the mound fails or shows ongoing trouble after repairs: persistent soggy areas, sewage smells, or backups indicate a failure.
  • If pumping and able repairs don't fix issues, or the mound shows structural deterioration (cracks, sagging, collapsed sections).
  • Expansion or remodeling: adding bedrooms, increasing bedrooms, or upgrading fixtures can require a larger or redesigned mound to handle higher daily flows.
  • Severe weather or flood damage: prolonged inundation or saturation can compromise the mound's integrity.
  • Updated codes or site redesign: local health departments may require a replacement to meet newer standards or to accommodate a different layout.

Planning a mound installation

  1. Schedule a site evaluation with a licensed septic professional to assess soil, groundwater, and current system performance.
  2. Get soil tests and a design plan to determine whether a relocation, expansion, or entirely new mound is best.
  3. Check local codes and obtain all necessary permits before work begins.
  4. Develop a realistic installation timeline, including site preparation, equipment access, and weather considerations.
  5. Arrange for post-installation inspection and testing to confirm proper operation.
  6. Plan ongoing maintenance and a pumping schedule to protect the new mound.

How to extend the life of your mound system

  • Schedule regular inspections with a septic professional (at least every 1–3 years, more often for larger households).
  • Pump the septic tank as recommended (typical intervals range from 2–3 years for many homes; more frequent if you have a disposal, large family, or short household cycles).
  • Protect the drain field: keep vehicles and heavy equipment off the mound, avoid planting trees or deep-rooted vegetation over or near the mound, and prevent irrigation directly above it.
  • Use water wisely: fix leaks, install high-efficiency appliances, and spread out laundry and dishwashing to avoid peak loads.
  • Avoid flushing inappropriate items or chemicals: fats, wipes, solvents, or pharmaceuticals can harm beneficial bacteria and clog components.
  • Monitor for early warning signs: damp spots, odors, gurgling toilets, or backups should prompt a professional evaluation before a major failure.

Quick planning notes

  • A mound installation is a long-term investment. Most homes won't need a new mound frequently; you'll replace or upgrade primarily when the current system fails or when capacity needs change.
  • Early planning and proactive maintenance can help you time a replacement with the least disruption and cost.

When to Call a Professional

Before you break ground: planning and design

A mound system is a major install driven by site conditions, so start with a pro to determine feasibility and design. If any of these apply, bring in a licensed septic professional early.

  • Your property has shallow soil depth, high groundwater, or poor drainage.
  • Soil tests show percolation rates outside the acceptable range for a mound system.
  • You're replacing a failed septic system and a mound is recommended by a health department or designer.
  • You need help choosing the right mound design and ensuring local code compliance.

During site evaluation and design

  • A licensed designer or engineer should perform soil tests and hydraulic calculations to size the mound correctly.
  • They'll map the layout: effluent distribution, fill material, and venting to meet performance goals.
  • They'll work with the local health department to secure permits and plan inspections.

If you're unsure what to ask, a pro can translate soil results and tradeoffs into plain language.

Red flags during excavation and installation

  • Groundwater appears at the surface or test pits stay wet, signaling drainage or saturation issues.
  • Soil is rocky, has hardpan, or requires unexpected excavation to reach required depth.
  • Buried utilities, old septic lines, or unknown piping are encountered.
  • Trenches collapse, backfill settles unevenly, or surface pooling occurs after rain.

If you see any red flags, stop work and call the contractor right away.

Post-installation concerns that require a pro

  • Persistent odors around the mound or standing water on the mound surface.
  • Wastewater backing up into the house after heavy rain or high water usage.
  • Sudden changes in performance, unusual effluent color, or frequent repairs after installation.

Step-by-step: what to expect when you call

  1. Schedule on-site evaluation with a licensed septic contractor (and, if needed, a soils engineer).
  2. They perform soil tests, hydraulic sizing, and a detailed system layout.
  3. They submit plans for local permits and coordinate inspections at key milestones.
  4. Installation oversight ensures materials meet specs, drainage is correct, and grading won't shed water toward the house or well.
  5. After install, you'll receive a start-up checklist, maintenance guidance, and a long-term care plan.

Quick tips for coordinating with a pro

  • Have your site plan, lot map, and any previous soil reports handy.
  • Note drainage concerns, flood risk, and nearby wells or water sources.
  • Ask for a written maintenance plan, warranty details, and a clear timeline of inspections and approvals.
