Ultimate Guide to Septic float switch failure

Last updated: Mar 21, 2026

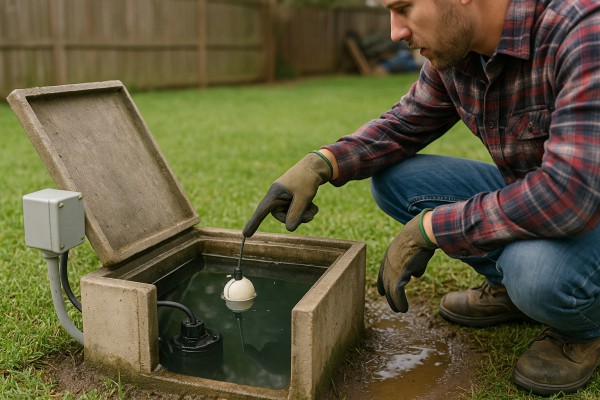

Septic float switch failure

A septic float switch failure happens when the device that tells your septic system when to pump or when to raise an alarm stops working correctly. The float is a small buoyant switch inside the pump chamber or tank. When water levels rise or fall to a set point, the float signals the pump to start or stop, or it triggers the high-water alarm. When the switch fails, you may see the pump run too often, not at all, or your alarm may give you a warning even when the tank is fine. In short: a faulty float switch can disrupt the timing of pumping, hide a potential problem, and lead to backups if not addressed.

What a septic float switch does

Monitors tank levels and controls the pump on/off cycling so the leach field receives the right flow.
Triggers a high-water alarm to warn you of potential overfill or blockage.
Works alongside the panel, switch, and wiring to keep wastewater moving safely.
Is usually located in the pump chamber or near the control box, depending on system design.

How float switch failure happens

Debris, sludge, or mineral buildup can physically seize the float or bind the switch.
Wear, corrosion, or damaged wiring reduce reliability and sensitivity.
Improper installation, freezing, or movement over time can misalign the switch.
Electrical issues inside the control panel or a faulty alarm can mask the real problem.
Vibration or pressure changes in the tank can misreport levels if the float is not seated correctly.

Common symptoms to watch for

Pump runs continuously or never starts, even with toilets flushed.
High-water alarm sounds without an obvious tank overfill.
Frequent short cycling or erratic pump behavior.
Visible corrosion, cracks, or loose wiring around the control area.
Odors near the pump chamber or access lid, suggesting a level or valve issue.
Delay between water level changes and pump response.

Quick checks you can safely perform

Verify power and status
Check the main breaker and any sub-panels feeding the septic system.
Look at the control panel lights or error codes if your system has them.
Observe from outside
Listen for the pump cycle when the system should be operating.
Note whether the high-water alarm is active or silent.
Inspect for obvious obstructions
From a safe position at the access lid, look for loose wiring, corroded connectors, or visible debris near the float area.
Do not reach into the tank or touch the float if you're uncomfortable or if there are signs of damage.
Check for recent changes
Have you added heavy amounts of water, flushable wipes, or non-septic items recently? These can affect how quickly the tank fills and how the switch behaves.

Safe diagnostic steps (non-invasive)

If you have an accessible control panel, compare the current status with the system's manual or label on the box.
Note any alarm codes and how long they are active; this helps distinguish between a temporary hiccup and a sticking switch.
Do not attempt to dismantle the pump chamber or replace components unless you are trained and comfortable with electrical and septic work.

When to bring in a pro

The alarm is ongoing, or you hear unusual noises from the pump.
There is sewage backup or standing wastewater in the area.
Visual inspection shows damaged wiring, corrosion, or a stuck float.

Prevention and maintenance tips

Schedule regular inspections of the pump chamber and electrical connections.
Keep the area around the access lid clear of debris and water pooling.
Use septic-safe products and avoid flushing non-biodegradable items that can foul the float and screens.
Monitor water use during heavy rain events to prevent sudden surges that can overwhelm the float switch.

What to expect during professional service

A technician will verify power, test the float with safe methods, and inspect wiring and the control panel.
They may replace the float switch, wiring, or the entire control module if needed.
After repairs, they'll run a diagnostic to ensure proper pump cycling and alarm function.

Signs of Septic float switch failure

Alarm indicators on the control panel

Persistent high-water alarm or "pump fault" messages appear on the panel.
Alarm codes change or appear intermittently, and none seem to resolve with a reset.
The panel beeps or lights flash in unusual patterns that you don't normally see.
The alarm behavior doesn't match what you expect from rainfall or usage patterns.

A steady or changing alarm is a common first clue that the float switch, the pump, or the control wiring isn't communicating properly.

Unusual pump operation and cycling

The pump runs continuously for long periods without dropping the water level.
The pump turns on and off very quickly (short cycling) or very infrequently, even as the water level changes.
The pump won't start when water rises toward the high level, yet might run later for no clear reason.
You notice odd startup/shutdown delays or the pump seems "happy" only in certain conditions.

These patterns point to signals being sent to the pump that are inconsistent with actual tank levels—often a sign the float switch isn't moving or reading correctly.

Tank level and drainage observations

Water level remains abnormally high after a pumping cycle.
Drainage to the drain field feels sluggish or delayed refilling of the tank.
Level readings drift or swing unpredictably, not aligning with rainfall or household usage.
You see odors or damp soil near the tank that don't match normal seasonal conditions.

A faulty float can leave the tank overfilled or under-optimized, leading to uneven drainage and odor issues.

Physical cues around access points

Wet soil, pooling, or dampness around the tank lid or access riser.
Visible corrosion, frayed wires, or damaged conduit near the control box or float wiring.
Debris buildup around the float arm, the float rod, or inside the tank cover that could impede movement.
The float or its mounting looks bent, loose, or stuck when you manually move it.

These physical signs suggest the switch assembly or wiring is compromised and may not reliably signal the pump.

Safe checks you can perform (before calling a professional)

Power safety: Turn off the circuit breaker feeding the septic pump before touching any components.
Access and inspect: With proper PPE, open the access lid and visually inspect the float and its rod for kinks, obstructions, or corrosion.
Manual test: Gently lift the float by hand to see if the pump starts. If the pump engages, the float switch may be sticking or out of calibration; if it does not engage, the issue could be wiring or switch failure.
Clear obstructions: Remove any debris around the float arm or within the float chamber, being careful not to push solids into sensitive areas.
Check wiring: Look for loose or damaged wires at the control panel and the float switch lead. Do not pull on wires; secure or reseat connections only if you know what you're doing.
Re-test: Restore power and observe whether the pump responds to the float position as expected. If signs persist (no start when high, constant run, erratic cycling), the switch or control circuitry is likely failing.
Document and monitor: Note any alarm codes, strange noises, or level changes and monitor for a day or two if you need to plan service.

If the signs continue after these checks, or if you're uncomfortable performing any step that involves opening the tank or wiring, it's time to schedule professional inspection and testing of the float switch, wiring, and pump.

Common Causes of Septic float switch failure

Mechanical wear and corrosion

Float switches rely on moving parts that live in a harsh wastewater environment. Over time, wear and corrosion can degrade performance or cause a complete failure. What to look for:

Worn or cracked float, causing buoyancy to change unexpectedly
Sticking or slow response as the arm or mechanism binds
Corroded or pitted switch contacts that don't reliably open or close
Damaged mounting hardware or a loose housing that allows misalignment

Debris, solids, and biofilm buildup

Everyday solids, grease, and paper products can accumulate around the switch. A slimy film or trapped particles can impede movement or insulate the sensor, leading to false readings or failure to trip. Common signs:

Float hangs up on sludge or scum layer
Particles cling to the shaft, slowing movement
Biofilm forms a sticky coat that reduces sensitivity

Electrical power and wiring problems

Fluid environments put extra stress on wiring and connections. A switch may fail or trip unpredictably if the electrical side isn't healthy. Red flags include:

No power reaching the switch (tripped breakers, blown fuses)
Loose or corroded wire connections at the terminal block
Wet, damaged, or frayed conductors that create intermittent contacts
Ground faults or short circuits causing frequent cycling

Incorrect installation, sizing, or mounting

If the switch isn't matched to the tank, or it's mounted incorrectly, it won't respond as intended. Typical issues:

Using the wrong type or rating for the pumping system
Float installed too high or too low, causing premature or late cycling
Inadequate clearance around the float, allowing interference with baffles or scum
Improper seal or mounting that lets moisture creep into the electronics

In lift stations or pump tanks, the switch's performance depends on the overall hydraulic setup. Problems here can mimic or mask switch failures:

Pump or valve failures causing abnormal water levels and erratic switch trips
Backflow or blocked discharge creating unstable pressure and false readings
Rapid water level changes due to inflow surges or leaks that overwhelm the switch's range

Temperature and environmental stresses

Extreme conditions can shorten a switch's life or change its behavior:

Freezing temperatures causing the float or linkages to stiffen or seize
High ambient humidity or direct spray accelerating corrosion
Heat or chemical fumes degrading plastics and seals

Chemical exposure and harsh cleaners

Household cleaners, disinfectants, and chlorinated products can degrade seals and the switch's interior components over time:

Seals becoming brittle or swollen
Corrosion around electrical contacts from aggressive chemicals
Residue buildup that alters buoyancy or electrical contact

Age and maintenance gaps

All mechanical devices wear out. If a float switch hasn't been inspected or serviced on a regular schedule, small issues can grow into failure:

Overtime drift in trip level due to wear
Delayed response from aging components
Dust, dirt, or moisture intrusion that accelerates deterioration

External physical damage

The tank environment isn't perfectly protected from bumps and impacts:

Mechanical hits or vibration from cleaning, equipment, or livestock nearby
Loose wiring or conduits damaged by routine maintenance
Objects lodged in the tank that affect float motion or the sensor's path

Poor-quality or incompatible parts

Not all float switches are built the same. Subpar construction or parts not rated for wastewater can fail prematurely:

Inadequate IP/rating for moisture exposure
Cheap seals or ferrules that leak
Switches not designed for the tank's temperature, chemical exposure, or flow rate

If you notice erratic cycling, constant running, or failure to trigger at the expected level, these common causes are worth checking first.

How to Diagnose Septic float switch failure

Quick signs of float switch failure

The pump runs nonstop even when the tank is not at risk of overflowing.
The pump never starts, or starts only after several resets.
The float seems stuck or won't move freely.
You hear unusual buzzing or clicking from the control box.
Water in the tank rises higher than it should before the pump activates.

Safety first

Shut off power at the house main breaker or at the pump disconnect before touching any electrical components.
Use insulated gloves if you must handle wet equipment.
Work in a dry area when possible; avoid leaning into the tank or opening wet components with wet hands.

Tools you'll need

Flashlight
Flat-head screwdriver
Multimeter (with continuity/ohms settings)
Small bucket or tray (to catch drips)
A second person can help stabilize the tank access if needed

Locate and inspect the float switch

Find the float switch assembly in the pump basin or control box area. It's typically a small device attached to a cord with a float at the end.
Look for obvious issues: loose or corroded connections, damaged blue/black/white wires, cracked housing, or visible debris around the float.
Gently move the float by hand with the power off. It should slide up and down smoothly without snagging on wires or fittings.
Check for debris or sediment that might be jamming the float or tether. Clear it carefully with a gloved hand or a small tool.

Manual movement test

With power off, grasp the float and slowly lift it upward to simulate a rising water level.
Listen for the pump starting as the float reaches the higher position (you may hear the relay click in the control box).
Lower the float back down and confirm the pump turns off when the float drops.
If the pump does not respond to manual movement, the switch or the wiring to the switch is likely faulty.
If the pump responds but only intermittently, the float or switch contacts may be worn or dirty.

Electrical test with a multimeter

Ensure power is OFF at the breaker/disconnect.
Access the float switch terminals: remove the switch cover or disconnect its leads from the control box, keeping track of how wires are connected.
Set your multimeter to continuity or low-resistance ohms.
Identify the common (COM) and normally open (NO) terminals on the switch.
With the float in the raised position (simulating high water), test for continuity between COM and NO. You should see a closed circuit (continuity) if the switch is functioning.
Lower the float to simulate low water and test again. The continuity should open (no contact) when the float is down.
If continuity does not appear in either position or does not switch between positions, the float switch is likely defective and should be replaced.
If you have a second switch or the control panel provides alternate readings, compare results to confirm consistency.

Check wiring and the control box

With power OFF, inspect terminal screws for tightness and corrosion. Loose or corroded terminals can mimic switch failure.
Look for melted insulation, exposed conductors, or water intrusion inside the control box.
Verify the supply voltage at the control box matches the pump's requirements. A dead feed or incorrect voltage can prevent proper operation even with a good float switch.
If the control box or relays appear damaged or burnt, the issue may be in the control circuitry rather than the float switch itself.

What to do if testing points to a failed switch

Replace the float switch following manufacturer instructions for your model. If you're unsure about compatibility, bring the old part to a hardware or septic supply store.
If you're not comfortable with electrical testing or cannot safely access the components, call a qualified septic technician.
After replacement, re-test both manual and electrical functions to confirm the new switch engages and disengages with the float.

Optional but helpful checks

Test after a light rain or pumping cycle to observe the system's response in a realistic scenario.
Verify that the overflow alarms or high-water alarms (if installed) trigger correctly when the new switch activates.

How Septic float switch failure Are Fixed

Quick checks to confirm a failed float switch

Pump won't start or won't stop when the tank level rises or falls, despite the power being on.
The control panel shows a fault code or an alarm that corresponds to the pump circuit.
The float doesn't move freely when you gently lift it with a non-conductive tool.
The float or the wiring shows visible damage, corrosion, or wet connections.
You hear a buzzing or humming from the control box with no pump activity.
Debris or scum around the float rod keeps the float from seating properly.

Safe, basic troubleshooting you can do yourself

Power off before you touch anything
Switch off the circuit breaker feeding the sump or septic pump.
If your system uses a dedicated disconnect, flip that switch first.
Inspect for obvious blockages and wear
Look for debris around the float rod or linkage. Gently remove any buildup with a long-handled, non-metal brush.
Check the float for cracks, dents, or waterlogged material. Replace if damaged.
Examine the cord and strain relief. A frayed cord or loose strain relief can cause failure.
Check connections at the control panel
With power still off, open the panel and inspect for loose or corroded wires.
Tighten any loose terminals by hand firmly, then snug with a screwdriver if needed. Do not overtighten.
Look for moisture inside the panel. A damp interior often signals a seal issue that should be addressed before power is restored.
Do a basic test to gauge switch action
Reapply power and observe the pump response as you manipulate the float.
If your system responds when you lift or lower the float, the switch may be mechanically stuck or not signaling properly when in position.

Cleaning and freeing a stuck float

Power off again before any handling.
Access the float in the tank or chamber and gently move it through its range. If it frees up, the issue may be debris-induced sticking rather than a failed switch.
Clear any grime or film from the float surface and the rod or linkage with a damp cloth. Do not use solvents that could damage seals.
Reassemble and test by cycling the switch: raise the float to the "high" position, check that the pump starts; lower to the "low" position, check that the pump stops.

Replacing a faulty float switch

Confirm replacement compatibility
Match the switch type (mechanical float with a float rod or a submersible float sensor) and electrical rating (voltage, current, and mounting).
If in doubt, bring the old switch to a hardware or septic-supply store or check the manufacturer's part number.
Gather tools and safety gear
Screwdrivers, possibly a wrench, pliers, electrical tape or heat-shrink, replacement switch, and a bucket or towels in case of minor spills.
Keep a flashlight handy to inspect connections.
Remove the old switch
Power off and unplug the control box or disconnect the pump leads.
Note or label each wire position so you can reconnect correctly.
Detach the old switch from its mounting, then remove it from the assembly.
Install the new switch
Mount the new float switch in the same orientation as the old one.
Reconnect wires to the same terminals; ensure secure, clean connections.
If your setup uses a seal or gasket, reseal to prevent moisture intrusion.
Restore power and test
Turn power back on and verify the pump cycles with the float through its full range.
Listen for normal pump operation and watch for the float moving freely without sticking.

When to call a professional

You're uncomfortable working near electricity or standing water.
The control panel shows persistent fault codes after a replacement.
There's visible water around the electrical components or ongoing moisture in the panel.
The pump has failed repeatedly or you suspect a larger control-system fault beyond the float switch.

Typical Costs for Septic float switch failure

Minor repair

A minimal fix typically covers replacing a worn or stuck float switch, or tightening loose wiring connections. This kind of repair avoids touching the pump itself and can often be handled quickly if the chamber is accessible.

What it includes:
- Replacement of a single float switch element
- Cleaning and tightening wiring connections
- A quick verification of switch operation and cycling
Cost range:
- Parts: $20–$70
- Labor: $80–$180
- Total: $100–$250
Factors that affect price:
- Accessibility of the pump chamber
- Local labor rates
- Whether the existing wiring needs re-termination or a new connector
What a typical minor repair looks like:
- Step 1: Power off at the breaker and confirm no electrical energy is present.
- Step 2: Access the float switch in the pump chamber and inspect the switch and leads.
- Step 3: If the switch is faulty, replace it with a compatible unit and reattach leads securely.
- Step 4: Restore power and run a test cycle to confirm proper on/off operation.

Safety note: Do not enter septic tanks. If you're not comfortable with the inspection, hire a licensed septic tech to perform the replacement.

Moderate repair

A moderate repair involves replacing the float switch assembly and possibly the wiring harness or mounting hardware. In some cases the float switch is integrated with a control module or the pump's electrical assembly, so the fix is more involved but still avoids a full pump replacement.

What it includes:
- Replacing the float switch assembly (and any associated wiring harness)
- Replacing worn mounting hardware or brackets
- Verifying proper switch actuation and pump cycling
Cost range:
- Parts: $60–$250
- Labor: $150–$600
- Total: $210–$850
Factors that affect price:
- Whether the switch is sold as a standalone part or as part of a larger assembly
- The need to replace related wiring or a failed alarm/control lead
- System accessibility and travel time for the technician
What a typical moderate repair looks like:
- Step 1: Power down and confirm safety.
- Step 2: Remove the old float switch assembly and inspect the wiring harness.
- Step 3: Install the new switch assembly, reattach wiring, and secure mounting hardware.
- Step 4: Reconnect power, run multiple short cycles, and observe consistent cycling and alarm status.

Safety reminder: A moderate repair may still require a technician if the wiring runs through the control panel or if the tank must be opened. If there's any doubt, call a licensed pro.

Major repair

A major repair is usually necessary when the float switch failure has caused motor burnout, damaging the pump, control panel, or when the switch failure indicates a failing overall pump system. This level of repair often entails replacing the pump or the main control components.

What it includes:
- Replacing the septic pump unit (submersible pump)
- Replacing the control panel or alarm module if damaged
- Replacing associated sensors, check valve issues, and wiring runs as needed
Cost range:
- Parts: $300–$1,200 (pump, control panel, or integrated float switch assembly)
- Labor: $700–$1,800
- Total: $1,000–$3,000
- Note: In some setups with difficult access or required trenching, total could climb toward $3,500–$5,000
Factors that affect price:
- Type and horsepower of the pump
- Whether excavation or tank access is required
- Need to replace additional components (check valves, piping, alarm systems)
What a typical major repair looks like:
- Step 1: Schedule with a licensed septic technician; confirm any required permits.
- Step 2: Disconnect power and carefully remove the old pump and/or control panel.
- Step 3: Install the new pump and/or panel, reconnect wiring, and verify all safety interlocks and alarms.
- Step 4: Reassemble the enclosure, test the system through multiple cycles, and monitor for proper operation and leaks.

When to Call a Professional

Immediate red flags

Sewage backup in toilets, sinks, or fixtures, or wastewater pooling in the yard or around the tank/pump chamber.
Strong, persistent "rotten egg" or foul odor near the drainfield, tank lid, or pump area.
Alarm on the control panel sounding or flashing, or the float switch showing an error message.
Pump running constantly, cycling on and off rapidly, or not starting at all.
Water level rising and staying high in the tank or the pump chamber, with surface water or effluent visible.
Unusual noises, smoking, or signs of electrical issues near the pump or control panel.

Common signals of float switch trouble

A float switch failure can mimic other septic problems, so treat these as professional cues:

The float is stuck in an up or down position, preventing the pump from starting or stopping correctly.
Debris or sludge has clogged the float or arm, jamming the switch.
Wiring or connections are loose, corroded, or damaged.
The float is physically damaged or has water inside the float itself.
The control panel shows an error or the switch doesn't respond to the float's movement.

What a pro will do

Verify electrical safety and shutoffs, then test power to the pump and switch circuit.
Inspect the float switch, its arm, and the ballast line for obstruction or damage.
Use a multimeter or a test rig to confirm the switch is triggering the pump when the float rises and stops it when the float falls.
Check the pump, impeller, and intake for debris, sludge buildup, or clogging that could affect operation.
Inspect the control panel, wiring, and safety switches; recalibrate or replace the float switch if needed.
Assess the septic tank and pump chamber for solids buildup and determine if pumping is overdue.
Provide a maintenance plan, calculate the projected life of components, and—if needed—recommend replacement parts.

Safe DIY checks you can perform (and when not to)

Check the main electrical supply: ensure the breaker hasn't tripped and there's power to the pump area. Do not touch exposed wiring.
Listen for the pump: if it's not running when the float is high, a switch issue is likely—but don't force components to move.
Clearable exterior access: remove leaves or debris around the lid area to rule out external blockages, without opening the tank.
Do not open the septic tank or pressurize the chamber. Do not attempt to repair electrical components inside the pump chamber unless you are a trained professional.

Licensing and safety basics

Septic work and electrical repairs in or around septic systems are typically regulated. A licensed septic contractor can ensure compliance, protect your warranty, and reduce risk.
Ask for credentials, insurance, and references before scheduling service.
If you smell gas, encounter exposed wiring, or see sewage in the yard, treat it as an emergency and contact a licensed pro immediately.

How to prepare for the service call

Write down what happened, when you first noticed the issue, and any alarms or symptoms you observed.
Note the pump model (if visible) and the control panel type or any recent maintenance actions.
Clear accessible routes to the pump chamber or access lid, and provide the technician with safe entry instructions.
Avoid flushing or flushing non-biodegradable items until the system is inspected and repaired.

Quick decision guide

If you have standing wastewater, a strong odor, or an alarm—call a professional now.
If the system has symptoms but no backup or odor, schedule a prompt inspection to prevent costly damage.

How to Prevent Septic float switch failure

Regular inspections and testing

Regular checks help catch problems before they cause a failure.

Inspect the access cover area for moisture, corrosion, or debris.
Ensure the float moves freely; don't force it if it feels stuck.
Look for oily films or heavy sludge near the float that could impede movement.

Clean the float chamber and sensor

Sludge buildup can jam the float and throw off readings.

Remove the cover and clean the chamber, removing sediment from the bottom.
Gently wipe the float and the sensor with a damp cloth; avoid harsh cleaners.
Rinse lightly if needed to clear loose debris, then dry before reseating components.

Test the switch function

A controlled test confirms the switch operates as intended.

Turn off power at the septic panel to prevent accidental activation.
Open the access panel and locate the float and switch.
Manually lift the float to simulate rising water; listen for the pump to turn on at the proper level.
Slowly lower the float; confirm the pump turns off as water drops.
If the pump does not respond or the float sticks, do not reuse the unit and arrange service.

Check electrical connections and protection

Reliable wiring is essential for consistent operation.

Inspect conduits, cables, and the switch housing for wear, cracks, or moisture intrusion.
Tighten loose connections; ensure strain relief is intact.
Verify the circuit breaker and control panel show no faults; replace fuses if needed.
Use a weatherproof cover for the junction box if the switch is exposed to damp conditions.

Protect the switch from solids and corrosive wastes

Solids and chemicals shorten float life and reliability.

Install an appropriately sized effluent screen or basket to trap solids before reaching the pump chamber.
Avoid flushing non-degradables, cleaning wipes, grease, and solvents down drains.
If your wastewater has higher grease loads, consider a grease trap and more frequent maintenance.

Maintain the pump and wastewater health to reduce stress on the float

A healthy system minimizes float stress.

Follow local guidelines for regular pumping and desludging of the tank; don't skip scheduled maintenance.
Keep the tank level within normal ranges; extreme high or low levels stress the float and pump.
Monitor the drain field; signs of a failing leach field can alter water levels and impact switch performance.

When to consider replacement

Repeated failures after cleaning and testing may indicate wear.

Float arms can bend or sensors degrade with age; the unit or controller may need replacement.
Controllers can fail or become obsolete; upgrading to a more robust, weatherproof setup or adding redundancy can help prevent future issues.
